HA5002 - 110MHz/ High Slew Rate/ High Output Current Buffer

Features

  • Voltage Gain.
  • . 0.995 High Input Impedance.
  • . 3000kΩ Low Output Impedance.
  • . . . . 3Ω Very High Slew Rate.
  • . 1300V/µs Very Wide Bandwidth.
  • . . 110MHz High Output Current.
  • . . . ±200mA Pulsed O.

📥 Download Datasheet

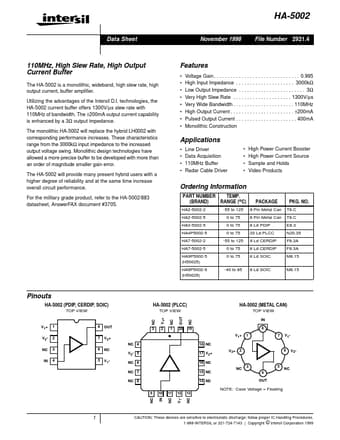

Datasheet preview – HA5002

Datasheet Details

Part number HA5002
Manufacturer Intersil Corporation
File Size 820.55 KB
Description 110MHz/ High Slew Rate/ High Output Current Buffer
Datasheet download datasheet HA5002 Datasheet
Additional preview pages of the HA5002 datasheet.

📁 Similar Datasheet

  • HA5023 - Dual 125MHz Video CurrentFeedback Amplifier (Renesas)
  • HA5024 - Quad 125MHz Video CurrentFeedback Amplifier (Renesas)
  • HA5234 - (HA5232) Precision Dual and Quad Operational Amplifiers (Harris)
  • HA5320-883 - High Speed Precision Sample and Hold Amplifier (Intersil)
  • HA5340-883 - Precision Monolithic Sample and Hold Amplifier (Intersil)
  • HA55 - Power Inductors (TT)
  • HA55L - Power Inductors (TT)
Other Datasheets by Intersil Corporation
  • HA5013 - Triple/ 125MHz Video Amplifier
  • HA5022 - Dual/ 125MHz/ Video Current Feedback Amplifier
  • HA5023 - Dual 125MHz Video Current Feedback Amplifier
  • HA5024 - Quad 125MHz Video Current Feedback Amplifier
  • HA5025 - Quad/ 125MHz Video Current Feedback Amplifier
  • HA5135 - 2.5MHz / Precision Operational Amplifier
  • HA5142 - Dual/ 400kHz/ Ultra-Low Power Operational Amplifier
  • HA5221 - HA-5221/22 SPICE OPERATIONAL AMPLIFIER MACRO-MODEL

Full PDF Text Transcription

Click to expand full text
HA-5002 Data Sheet November 1998 File Number 2921.4 110MHz, High Slew Rate, High Output Current Buffer The HA-5002 is a monolithic, wideband, high slew rate, high output current, buffer amplifier. Utilizing the advantages of the Intersil D.I. technologies, the HA-5002 current buffer offers 1300V/µs slew rate with 110MHz of bandwidth. The ±200mA output current capability is enhanced by a 3Ω output impedance. The monolithic HA-5002 will replace the hybrid LH0002 with corresponding performance increases. These characteristics range from the 3000kΩ input impedance to the increased output voltage swing. Monolithic design technologies have allowed a more precise buffer to be developed with more than an order of magnitude smaller gain error.
