HC5503 - Low Cost 24V SLIC

HC5503 Description

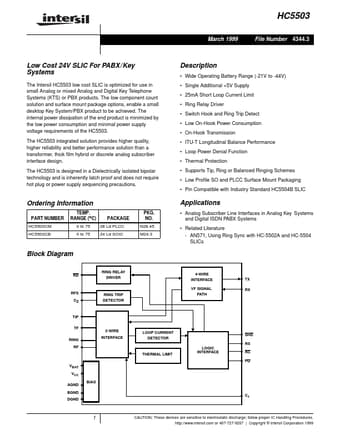

HC5503 March 1999 File Number 4344.3 Low Cost 24V SLIC For PABX/Key Systems The Intersil HC5503 low cost SLIC is optimized for use in small Analog or.
Wide Operating Battery Range (-21V to -44V). Single Additional +5V Supply. 25mA Short Loop Current Limit. Ring Re.

HC5503 Applications

* Analog Subscriber Line Interfaces in Analog Key Systems and Digital ISDN PABX Systems
* Related Literature - AN571, Using Ring Sync with HC-5502A and HC-5504 SLICs Block Diagram RD RING RELAY DRIVER 4-WIRE INTERFACE VF SIGNAL PATH TX RX RFS C2 RING TRIP DETECTOR TIP TF RING RF
