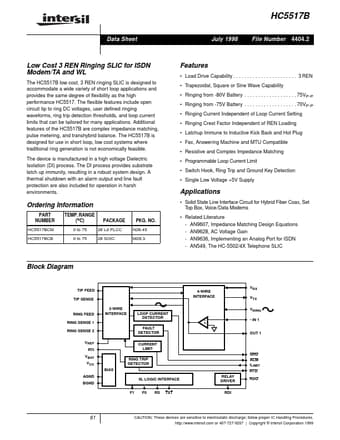

HC5517B
Data Sheet July 1998 File Number
4404.2
Low Cost 3 REN Ringing SLIC for ISDN Modem/TA and WL
The HC5517B low cost, 3 REN ringing SLIC is designed to accommodate a wide variety of short loop applications and provides the same degree of flexibility as the high performance HC5517. The flexible features include open circuit tip to ring DC voltages, user defined ringing waveforms, ring trip detection thresholds, and loop current limits that can be tailored for many applications. Additional features of the HC5517B are complex impedance matching, pulse metering, and transhybrid balance. The HC5517B is designed for use in short loop, low cost systems where traditional ring generation is not economically feasible. The device is manufactured in a high voltage Dielectric Isolation (DI) process.
