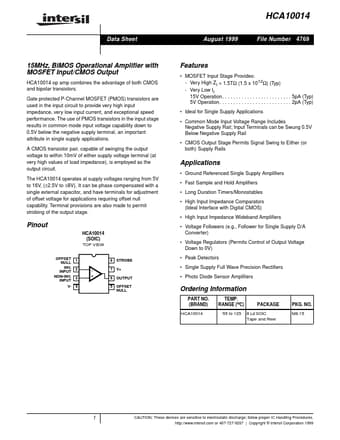

HCA10014 Datasheet, Output, Intersil Corporation

✔ HCA10014 Features

MOSFET Input Stage Provides: - Very High ZI = 1.5TΩ (1.5 x 1012Ω) (Typ) - Very Low II 15V Operation. . . . . . . . . . . . . . . . . . . . . . . . . 5pA (Typ) 5V Operat

✔ HCA10014 Application

A CMOS transistor pair, capable of swinging the output voltage to within 10mV of either supply voltage term

PDF File Details

Intersil Corporation manufacturer logo

Part number:

HCA10014

Manufacturer:

Intersil Corporation

File Size:

521.74 KB

Download:

📄 Datasheet

Description:

15mhz/ bimos operational amplifier with mosfet input/cmos output. Figure 7 is a block diagram of the HCA10014. The input terminals may be operated down to 0.5V below the negative supply rail, and the
