HI-303 - CMOS Analog Switches

HI-303 Description

HI-301 thru HI-307 TM Data Sheet March 2000 File Number 3125.4 CMOS Analog Switches The HI-301 thru HI-307 series of switches are monolithic devi.

HI-303 Features

* Analog Signal Range (±15V Supplies)
* ±15V
* Low Leakage at 25oC
* . . . 40pA
* Low Leakage at 125oC
* . . . 1nA
* Low On Resistance at 25oC
* . . . . 35Ω

HI-303 Applications

* Sample and Hold (i. e. , Low Leakage Switching)
* Op Amp Gain Switching (i. e. , Low On Resistance)
* Portable, Battery Operated Circuits
* Low Level Switching Circuits
* Dual or Single Supply Systems Functional Diagram S IN N P D Pinouts Switch States Shown

📥 Download Datasheet

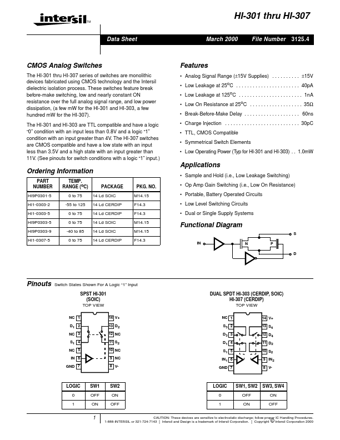

Preview of HI-303 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HI-303
Manufacturer
Intersil Corporation
File Size
117.14 KB
Datasheet
HI-303_IntersilCorporation.pdf
Description
CMOS Analog Switches
