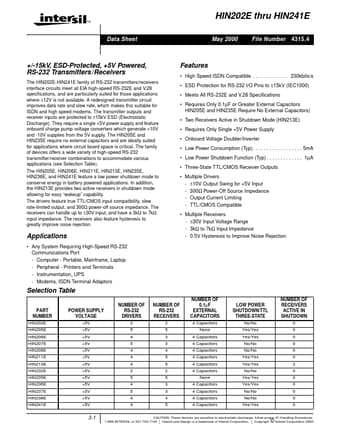

HIN202E thru HIN241E
TM
Data Sheet
May 2000
File Number
4315.4
+/-15kV, ESD-Protected, +5V Powered, RS-232 Transmitters/Receivers
The HIN202E-HIN241E family of RS-232 transmitters/receivers interface circuits meet all ElA high-speed RS-232E and V.28 specifications, and are particularly suited for those applications where ±12V is not available. A redesigned transmitter circuit improves data rate and slew rate, which makes this suitable for ISDN and high speed modems. The transmitter outputs and receiver inputs are protected to ±15kV ESD (Electrostatic Discharge). They require a single +5V power supply and feature onboard charge pump voltage converters which generate +10V and -10V supplies from the 5V supply.
HIN211E Datasheet
