HM1-6504883 Datasheet PDF - Intersil Corporation 4096 x 1 CMOS RAM Specs

HM1-6504883 - 4096 x 1 CMOS RAM

Datasheet Summary

Description

The HM-6504/883 is a 4096 x 1 static CMOS RAM fabricated using self-aligned silicon gate technology.

The device utilizes synchronous circuitry to achieve high performance and low power operation.

Features

This Circuit is Processed in Accordance to MIL-STD883 and is Fully Conformant Under the Provisions of Paragraph 1.2.1.
Low Power Standby.
. . . . 125µW Max.
Low Power Operation.
. . . 35mW/MHz Max.
Data Retention.
. . . at 2.0V Min.
TTL Compatible Input/Output.
Three-State Output.
Standard JEDEC Pinout.
Fast Access Time.

Datasheet Details

Part number	HM1-6504883
Manufacturer	Intersil Corporation
File Size	167.86 KB
Description	4096 x 1 CMOS RAM
Datasheet	HM1-6504883 Datasheet

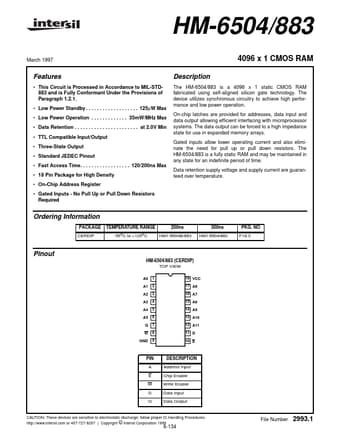

Additional preview pages of the HM1-6504883 datasheet.

📁 Similar Datasheet

HM1-65161 - 2K X 8 General Purpose CMOS SRAM (MHS)

HM1-7621 - HM-7621 (Harris)

HM100N03 - N-Channel Enhancement Mode Power MOSFET (H&M Semiconductor)

HM100N03D - N-Channel Enhancement Mode Power MOSFET (H&M Semiconductor)

HM100N03GA - N-Channel Enhancement Mode Power MOSFET (H&M Semiconductor)

HM100N03KA - N-Channel Enhancement Mode Power MOSFET (H&M Semiconductor)

HM100N06P - 60V N-Channel MOSFET (HKZ)

HM100P03K - MOSFET (H&M Semiconductor)

HM100P35E - MOSFET (H&M Semiconductor)

HM10414 - 256 x 1-Bit Fully Vecoded RAM (Hitachi)

Full PDF Text Transcription

Click to expand full text

HM-6504/883 March 1997 4096 x 1 CMOS RAM Description The HM-6504/883 is a 4096 x 1 static CMOS RAM fabricated using self-aligned silicon gate technology. The device utilizes synchronous circuitry to achieve high performance and low power operation. On-chip latches are provided for addresses, data input and data output allowing efﬁcient interfacing with microprocessor systems. The data output can be forced to a high impedance state for use in expanded memory arrays. Gated inputs allow lower operating current and also eliminate the need for pull up or pull down resistors. The HM-6504/883 is a fully static RAM and may be maintained in any state for an indeﬁnite period of time. Data retention supply voltage and supply current are guaranteed over temperature.
