HM1-6508B883

1024 x 1 CMOS RAM

HM1-6508B883 Features

* This Circuit is Processed in Accordance to MIL-STD-883 and is Fully Conformant Under the Provisions of Paragraph 1.2.1.

* Low Power Standby . . . . . . . . . . . . . . . . . . . . 50µW Max

* Low Power Operation . . . . . . . . . . . . . 20mW/MHz Max

* Fast Access Ti

HM1-6508B883 General Description

The HM-6508/883 is a 1024 x 1 static CMOS RAM fabricated using self-aligned silicon gate technology. Synchronous circuit design techniques are employed to achieve high performance and low power operation. On chip latches are provided for address allowing efficient interfacing with microprocessor syst.

HM1-6508B883 Datasheet (234.24 KB)

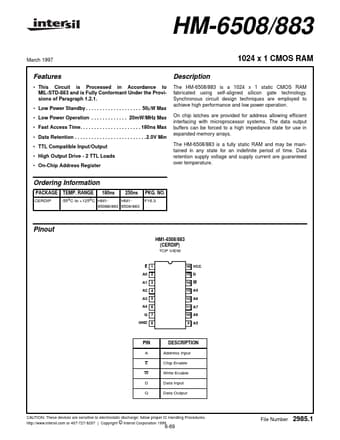

Preview of HM1-6508B883 PDF

Datasheet Details

Part number:

HM1-6508B883

Manufacturer:

Intersil Corporation

File Size:

234.24 KB

Description:

1024 x 1 cmos ram.
