HM3-6514B-9

1024 x 4 CMOS RAM

HM3-6514B-9 Features

* Low Power Standby . . . . . . . . . . . . . . . . . . . 125µW Max

* Low Power Operation . . . . . . . . . . . . . 35mW/MHz Max

* Data Retention . . . . . . . . . . . . . . . . . . . . . . . at 2.0V Min

* TTL Compatible Input/Output

* Common Data Input/Output

HM3-6514B-9 General Description

The HM-6514 is a 1024 x 4 static CMOS RAM fabricated using self-aligned silicon gate technology. The device utilizes synchronous circuitry to achieve high performance and low power operation. On-chip latches are provided for addresses allowing efficient interfacing with microprocessor systems. The da.

HM3-6514B-9 Datasheet (41.05 KB)

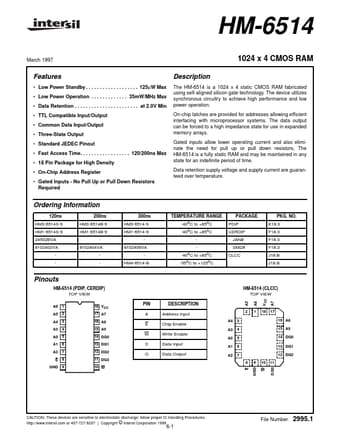

Preview of HM3-6514B-9 PDF

Datasheet Details

Part number:

HM3-6514B-9

Manufacturer:

Intersil Corporation

File Size:

41.05 KB

Description:

1024 x 4 cmos ram.
