HS-1115RH

Closed-Loop-Buffer Amplifier

HS-1115RH Features

* Electrically Screened to SMD 5962-96785

* MIL-PRF-38535 Class V Compliant

* User Programmable Output Voltage Limiting

* User Programmable For Closed-Loop Gains of +1, -1 or +2 Without Use of External Resistors

* Standard Operational Amplifier Pinout

HS-1115RH General Description

The HS-1115RH is a radiation hardened, high speed closed loop buffer featuring both user programmable gain and output limiting. QML approved and processed in full compliance with MIL-PRF-38535. Manufactured in proprietary, complementary bipolar UHF-1 (DI bonded wafer) process. The HS-1115RH offers a.

HS-1115RH Datasheet (268.52 KB)

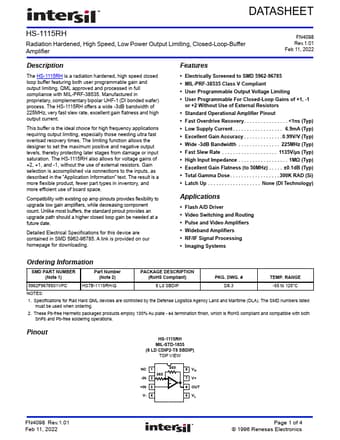

Preview of HS-1115RH PDF

Datasheet Details

Part number:

HS-1115RH

Manufacturer:

Intersil Corporation

File Size:

268.52 KB

Description:

Closed-loop-buffer amplifier.
DATASHEET HS-1115RH Radiation Hardened, High Speed, Low Power Output Limiting, Closed-Loop-Buffer Amplifier FN4098 Rev.1.01 Feb 11, 2022 Descriptio.
