HS-1120RH

Radiation Hardened/ Ultra High Speed Current Feedback Amplifier with Offset Adjust

HS-1120RH Features

* Electrically Screened to SMD 5962F9675601VPA

* MIL-PRF-38535 Class V Compliant

* Low Distortion (HD3, 30MHz) . . . . . . . . . . -84dBc (Typ)

* Wide -3dB Bandwidth . . . . . . . . . . . . . . . 850MHz (Typ)

* Very High Slew Rate . . . . . . . . . . . . . . .

HS-1120RH General Description

The HS-1120RH is a radiation hardened, high speed, wideband, fast settling current feedback amplifier. These devices are QML approved and are processed and screened in full compliance with MIL-PRF-38535. Built with Intersil’ proprietary, complementary bipolar UHF-1 (DI bonded wafer) process, it is th.

HS-1120RH Datasheet (119.45 KB)

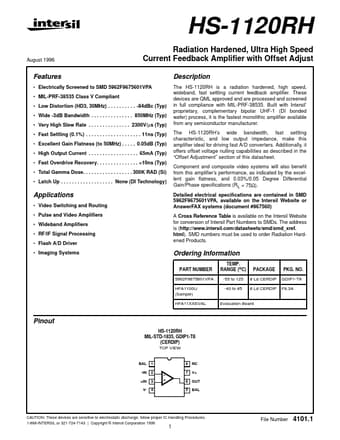

Preview of HS-1120RH PDF

Datasheet Details

Part number:

HS-1120RH

Manufacturer:

Intersil Corporation

File Size:

119.45 KB

Description:

Radiation hardened/ ultra high speed current feedback amplifier with offset adjust.
