HS-1135RH

Radiation Hardened/ High Speed/ Low Power Current Feedback Amplifier with Programmable Output Limiting

HS-1135RH Features

* user programmable output limiting, via the VH and VL pins. The HS-1135RH is the ideal choice for high speed, low power applications requiring output limiting (e.g., flash A/D drivers), especially those requiring fast overdrive recovery times. The limiting function allows the designer to set the maxim

HS-1135RH General Description

applies to the symmetrical low clamp circuitry controlled by VL. When the output is clamped, the negative input continues to source a slewing current (ICLAMP) in an attempt to force the output to the quiescent voltage defined by the input. QP5 must sink this current while clamping, because the -IN c.

HS-1135RH Datasheet (63.00 KB)

Preview of HS-1135RH PDF

Datasheet Details

Part number:

HS-1135RH

Manufacturer:

Intersil Corporation

File Size:

63.00 KB

Description:

Radiation hardened/ high speed/ low power current feedback amplifier with programmable output limiting.

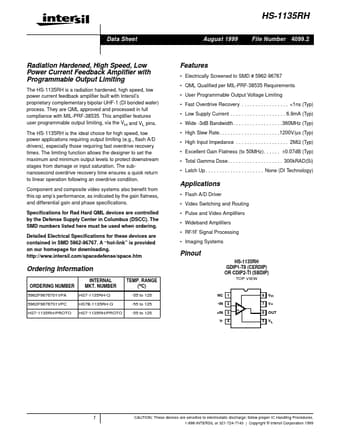

HS-1135RH Data Sheet August 1999 File Number 4099.2 Radiation Hardened, High Speed, Low Power Current Feedback Amplifier with Programmable Output Limi.
