HS-565ARH - Radiation Hardened High Speed/ Monolithic Digital-to-Analog Converter

Product Overview

Intersil Corporation

Part number	HS-565ARH
Manufacturer	Intersil Corporation
File Size	360.27 KB
Description	Radiation Hardened High Speed/ Monolithic Digital-to-Analog Converter
Datasheet	HS-565ARH Datasheet

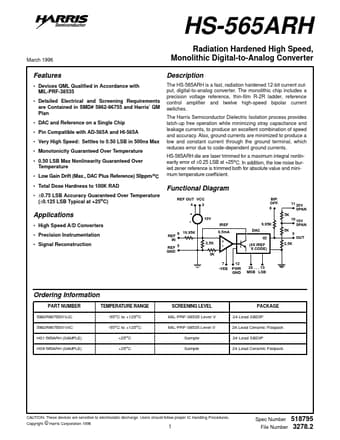

Additional preview pages of the HS-565ARH datasheet.

The HS-565ARH is a fast, radiation hardened 12-bit current output, digital-to-analog converter.

Devices QML Qualiﬁed in Accordance with MIL-PRF-38535.
Detailed Electrical and Screening Requirements are Contained in SMD# 5962-96755 and Harris’ QM Plan.
DAC and Reference on a Single Chip.
Pin Compatible with AD-565A and HI-565A.
Very High Speed: Settles to 0.50 LSB in 500ns Max.
Monotonicity Guaranteed Over Temperature.
0.50 LSB Max Nonlinearity Guaranteed Over Temperature.
Low Gain Drift (Max. , DAC Plus Reference) 50pp.
