HS1-80C85RH

Radiation Hardened 8-Bit CMOS Microprocessor

HS1-80C85RH Features

* Devices QML Qualified in Accordance With MIL-PRF-38535

* Detailed Electrical and Screening Requirements are Contained in SMD# 5962-95824 and Intersil’ QM Plan

* Radiation Hardened EPI-CMOS - Parametrics Guaranteed 1 x 105 RAD(Si) - Transient Upset > 1 x 108 RAD(Si)/s - Latch

HS1-80C85RH General Description

The HS-80C85RH is an 8-bit CMOS microprocessor fabricated using the Intersil radiation hardened self-aligned junction isolated (SAJI) silicon gate technology. Latch-up free operation is achieved by the use of epitaxial starting material to eliminate the parasitic SCR effect seen in conventional bulk.

HS1-80C85RH Datasheet (159.49 KB)

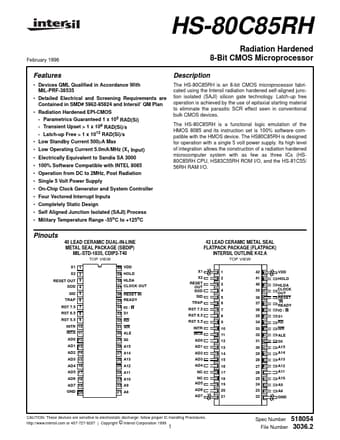

Preview of HS1-80C85RH PDF

Datasheet Details

Part number:

HS1-80C85RH

Manufacturer:

Intersil Corporation

File Size:

159.49 KB

Description:

Radiation hardened 8-bit cmos microprocessor.
