ICM7226 Datasheet, Counter/timer, Intersil Corporation

ICM7226 Features

• Counter/timer
• CMOS Design for Very Low Power
• Output Drivers Directly Drive Both Digits and Segments of Large 8-Digit LED Displays
• Measures Frequencies from DC to 10MHz;

PDF File Details

Part number:

ICM7226

Manufacturer:

Intersil Corporation

File Size:

173.67kb

Download:

📄 Datasheet

Description:

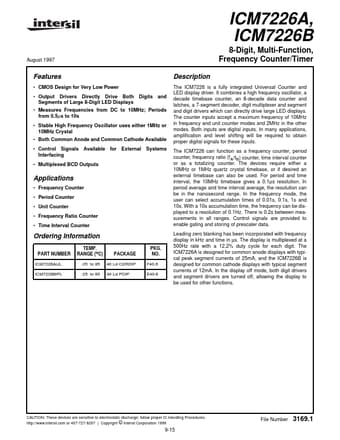

8-digit multi-function frequency counter/timer. The ICM7226 is a fully integrated Universal Counter and LED display driver. It combines a high frequency oscillator, a decade timebas

ICM7226 Application

• Applications amplification and level shifting will be required to obtain proper digital signals for these inputs. The ICM7226 can function as a freq
