ID82C82 Description

82C82 March 1997 CMOS Octal Latching Bus Driver .
The Intersil 82C82 is a high performance CMOS Octal Latching Buffer manufactured using a self-aligned silicon gate CMOS process (Scaled SAJI IV).

ID82C82 Features

* Full Eight-Bit Parallel Latching Buffer
* Bipolar 8282 Compatible
* Three-State Noninverting Outputs
* Propagation Delay
* . 35ns Max.
* Gated Inputs: - Reduce Operating Power - Eliminate the Need for Pull-Up Resistors

📥 Download Datasheet

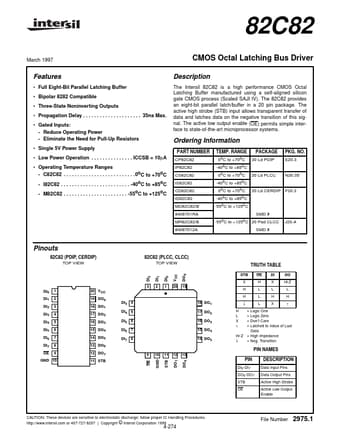

ID82C82 Datasheet Preview — Preview of ID82C82 PDF

Datasheet Details

Part number: ID82C82
Manufacturer: Intersil Corporation
File Size: 103.22 KB
Datasheet: ID82C82_IntersilCorporation.pdf
Description: CMOS Octal Latching Bus Driver
