ID82C86H

CMOS Octal Bus Transceiver

ID82C86H Features

* Full Eight Bit Bi-Directional Bus Interface

* Industry Standard 8286 Compatible Pinout

* High Drive Capability - B Side IOL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20mA - A Side IOL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12mA

ID82C86H General Description

The Intersil 82C86H is a high performance CMOS Octal Transceiver manufactured using a self-aligned silicon gate CMOS process (Scaled SAJI IV). The 82C86H provides a full eight-bit bi-directional bus interface in a 20 lead package. The Transmit (T) control determines the data direction. The active lo.

ID82C86H Datasheet (109.17 KB)

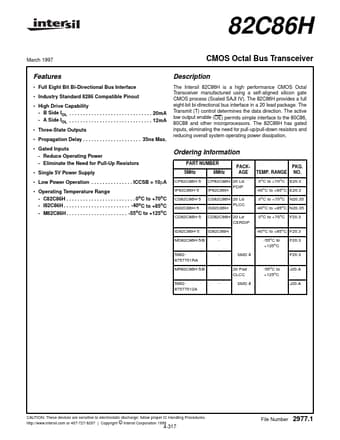

Preview of ID82C86H PDF

Datasheet Details

Part number:

ID82C86H

Manufacturer:

Intersil Corporation

File Size:

109.17 KB

Description:

Cmos octal bus transceiver.
