ID82C88

CMOS Bus Controller

ID82C88 Features

* Compatible with Bipolar 8288

* Performance Compatible with: - 80C86/80C88 . . . . . . . . . . . . . . . . . . . . . . . . . .(5/8MHz) - 80186/80188 . . . . . . . . . . . . . . . . . . . . . . . . . .(6/8MHz) - 8086/8088 . . . . . . . . . . . . . . . . . . . . . . . . . . . .(5/8MHz

ID82C88 General Description

The Intersil 82C88 is a high performance CMOS Bus Controller manufactured using a self-aligned silicon gate CMOS process (Scaled SAJI IV). The 82C88 provides the control and command timing signals for 80C86, 80C88, 8086, 8088, 8089, 80186, and 80188 based systems. The high output drive capability of.

ID82C88 Datasheet (129.58 KB)

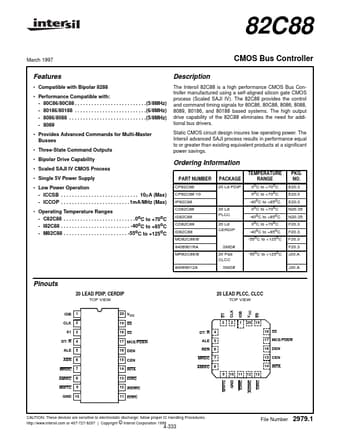

Preview of ID82C88 PDF

Datasheet Details

Part number:

ID82C88

Manufacturer:

Intersil Corporation

File Size:

129.58 KB

Description:

Cmos bus controller.
