IP82C52

CMOS Serial Controller Interface

IP82C52 Features

* Single Chip UART/BRG

* DC to 16MHz (1M Baud) Operation

* Crystal or External Clock Input

* On-Chip Baud Rate Generator - 72 Selectable Baud Rates

* Interrupt Mode with Mask Capability

* Microprocessor Bus Oriented Interface

* 80C86 Compatible

IP82C52 General Description

The Intersil 82C52 is a high performance programmable Universal Asynchronous Receiver/Transmitter (UART) and Baud Rate Generator (BRG) on a single chip. Utilizing the Intersil advanced Scaled SAJI IV CMOS process, the 82C52 will support data rates up to 1M baud asynchronously with a 16X clock (16MHz.

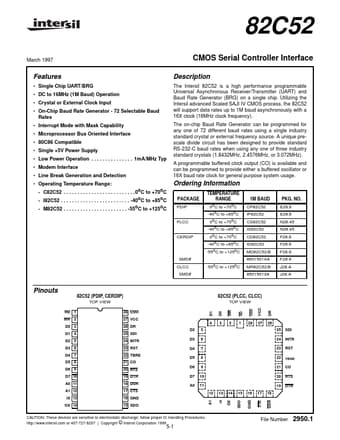

IP82C52 Datasheet (255.61 KB)
