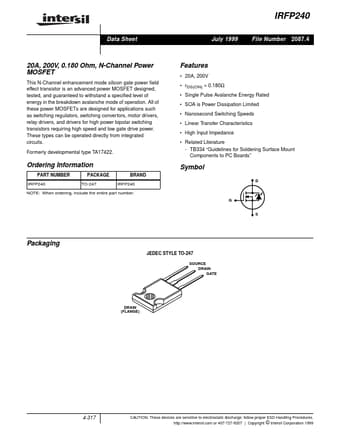

IRFP240
Features
- 20A, 200V
- r DS(ON) = 0.180Ω
- Single Pulse Avalanche Energy Rated
- SOA is Power Dissipation Limited
- Nanosecond Switching Speeds
- Linear Transfer Characteristics
- High Input Impedance
- Related Literature
- TB334 “Guidelines for Soldering Surface Mount ponents to PC Boards”
Ordering Information
PART NUMBER IRFP240 PACKAGE TO-247 BRAND IRFP240
Symbol
NOTE: When ordering, include the entire part number.
Packaging
JEDEC STYLE TO-247
SOURCE DRAIN GATE
DRAIN (FLANGE)
4-317
CAUTION: These devices are sensitive to electrostatic discharge; follow proper ESD Handling Procedures. http://.intersil. or 407-727-9207 | Copyright © Intersil Corporation 1999
Absolute Maximum Ratings
TC = 25o C, Unless Otherwise Specified IRFP240 200 200 20 12 80 ±20 150 1.2 510 -55 to 150 300 260 UNITS V V A A A V W W/o C m J o C o C o C
Drain to Source Voltage (Note 1)
- -
- -
- -
- -
- - . . . . .VDS...
