ISL29003 - Light-to-Digital Output Sensor

ISL29003 Description

Data Sheet November 17, 2011 ISL29003 FN7464.6 Light-to-Digital Output Sensor with High Sensitivity, Gain Selection, Interrupt Function and I2C Int.

ISL29003 Features

* Range select via I2C - Range 1 = 0 lux to 1000 lux - Range 2 = 0 lux to 4000 lux - Range 3 = 0 lux to 16,000 lux - Range 4 = 0 lux to 64,000 lux
* Human eye response (540nm peak sensitivity)
* Temperature compensated
* 16-bit resolution
* Adjustable resoluti

ISL29003 Applications

* Ambient light sensing
* Backlight control
* Temperature control systems
* Contrast control
* Camera light meters
* Lighting controls Block Diagram VDD 1 PHOTODIODE 1 MODE GAIN/RANGE INT TIME SHDN MUX INTEGRATING ADC PHOTODIODE 2 IREF FOSC 3 REXT

📥 Download Datasheet

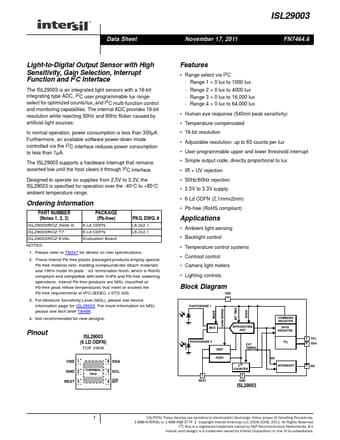

Preview of ISL29003 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ISL29003
Manufacturer
Intersil Corporation
File Size
283.22 KB
Datasheet
ISL29003_IntersilCorporation.pdf
Description
Light-to-Digital Output Sensor
