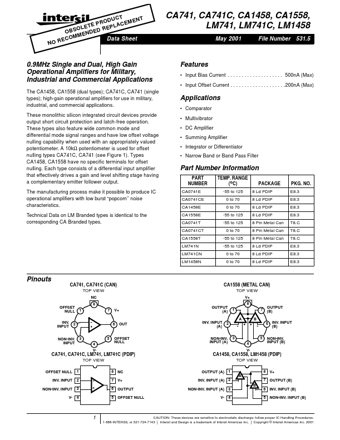

feature wide mon mode and differential mode signal ranges and have low offset voltage nulling capability when used with an appropriately valued potentiometer. A 10kΩ potentiometer is used for offset nulling types CA741C, CA741 (see Figure 1). Types CA1458, CA1558 have no specific terminals for offset nulling. Each type consists of a differential input amplifier that effectively drives a gain and level shifting stage having a plementary emitter follower output. The manufacturing process make it possible to produce IC operational amplifiers with low burst “popcorn’’ noise characteristics. Technical Data on LM Branded types is identical to the corresponding CA Branded types. Features - Input Bias Current - - - - 500n A (Max) - Input Offset Current - - - . . . . 200n A (Max) Applications - parator - Multivibrator - DC Amplifier - Summing Amplifier - Integrator or Differentiator - Narrow Band or Band Pass Filter Ordering Information PART NUMBER CA0741E CA0741CE CA1458E CA1558E CA0741T CA0741CT CA1558T LM741N LM741CN LM1458N TEMP. RANGE (o C) -55 to 125 0 to 70 0 to 70 -55 to 125 -55 to 125 0 to 70 -55 to 125 -55 to 125 0 to 70 0 to 70 PACKAGE 8 Ld PDIP 8 Ld PDIP 8 Ld PDIP 8 Ld PDIP 8 Pin Metal Can 8 Pin Metal Can 8 Pin Metal Can 8 Ld PDIP 8 Ld PDIP 8 Ld PDIP PKG. NO. E8.3 E8.3 E8.3 E8.3 T8.C T8.C T8.C E8.3 E8.3 E8.3 Pinouts CA741, CA741C (CAN) TOP VIEW NC OFFSET NULL INV. INPUT 2 8 1 7 V+ OUTPUT (A) INV. INPUT (A) 2 1 A + + B CA1558 (METAL CAN) TOP VIEW V+ 8 7 OUTPUT (B) 6 INV. INPUT (B) 5 4 VNON-INV. INPUT (B) + 3 4 V5 NON-INV. INPUT OFFSET NULL NON-INV. INPUT (A) CA741, CA741C, LM741, LM741C (PDIP) TOP VIEW OFFSET NULL INV. INPUT NON-INV. INPUT V1 2 3 4 8 NC V+ OUTPUT OFFSET NULL CA1458, CA1558, LM1458 (PDIP) TOP VIEW OUTPUT (A) INV. INPUT (A) NON-INV. INPUT (A) V1 A 2 B 3 4 6 5 INV. INPUT (B) NON-INV. INPUT (B) 8 7 V+ OUTPUT (B) + 7 6 5 CAUTION: These devices are sensitive to electrostatic...
