MUR3060PT - Ultrafast Dual Diodes

This page provides the datasheet information for the MUR3060PT, a member of the MUR3040PT Ultrafast Dual Diodes family.

Datasheet Summary

Description

only.

Intersil Corporation reserves the right to make changes in circuit design and/or specifications at any time without notice.

Accordingly, the reader is cautioned to verify that data sheets are current before placing orders.

Features

  • Ultrafast with Soft Recovery.
  • .

📥 Download Datasheet

Datasheet preview – MUR3060PT

Datasheet Details

Part number MUR3060PT
Manufacturer Intersil Corporation
File Size 32.18 KB
Description Ultrafast Dual Diodes
Datasheet download datasheet MUR3060PT Datasheet
Additional preview pages of the MUR3060PT datasheet.

📁 Similar Datasheet

  • MUR3060PT - Ultrafast Rectifier (INCHANGE)
  • MUR3060PT - ULTRAFAST RECTIFIERS (Motorola)
  • MUR3060PT - Ultra Fast Recovery Diodes (Sirectifier)
  • MUR3060PT - 30.0 Ampere Glass Passivated Ultrafast Recovery Rectifier Diodes (Thinki Semiconductor)
  • MUR3060PT - Power Rectifiers (ON Semiconductor)
  • MUR3060PT - 30A ULTRA FAST RECTIFIERS (Digitron Semiconductors)
  • MUR3060PT - Ultrafast Dual Diodes (Harris)
  • MUR3060PT - 30 Amp Super Fast Recovery Rectifier (MCC)
  • MUR3060PT - Ultra-Fast Recovery Diode (Yangzhou Yangjie)
  • MUR3060PTG - SWITCHMODE Power Rectifiers (ON Semiconductor)
Other Datasheets by Intersil Corporation
  • MUR3020PT - 200V Ultrafast Dual Diodes
  • MUR3040PT - Ultrafast Dual Diodes
  • MUR1520 - 15A / 200V Ultrafast Diodes
  • MUR1540 - (MUR1540 / MUR1560) 15A / 400V - 600V Ultrafast Diodes
  • MUR1560 - (MUR1540 / MUR1560) 15A / 400V - 600V Ultrafast Diodes
  • MUR1620CT - 200V Ultrafast Dual Diodes
  • MUR8100E - 8A / 1000V Ultrafast Diodes
  • MURP810 - 8A / 1000V Ultrafast Diodes

Full PDF Text Transcription

Click to expand full text

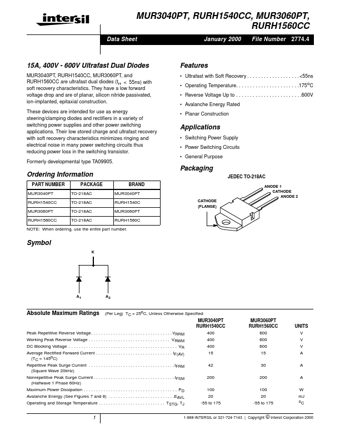

MUR3040PT, RURH1540CC, MUR3060PT, RURH1560CC Data Sheet January 2000 File Number 2774.4 15A, 400V - 600V Ultrafast Dual Diodes MUR3040PT, RURH1540CC, MUR3060PT, and RURH1560CC are ultrafast dual diodes (trr < 55ns) with soft recovery characteristics. They have a low forward voltage drop and are of planar, silicon nitride passivated, ion-implanted, epitaxial construction. These devices are intended for use as energy steering/clamping diodes and rectifiers in a variety of switching power supplies and other power switching applications. Their low stored charge and ultrafast recovery with soft recovery characteristics minimizes ringing and electrical noise in many power switching circuits thus reducing power loss in the switching transistor. Formerly developmental type TA09905.
