RURG1540CC 15A/ 200V Ultrafast Dual Diode

only. Intersil Corporation reserves the right to make changes in circuit design and/or specifications at any time without notice. Accordingly, the reader is cautioned to verify that data sheets are current before placing orders. Information furnished by Intersil is believed to be accurate and reliab.

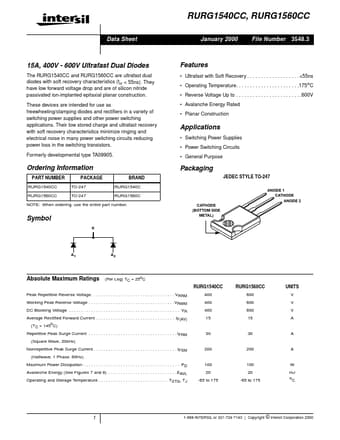

RURG1540CC, RURG1560CC Data Sheet January 2000 File Number 3548.3 15A, 400V - 600V Ultrafast Dual Diodes The RURG1540CC and RURG1560CC are ultrafast dual diodes with soft recovery characteristics (trr < 55ns). They have low forward voltage drop and are of silicon nitride passivated ion-implanted epitaxial planar construction. These devices are intended for use as freewheeling/clamping diodes and rectiﬁers in a variety of switching power supplies and other power switching applications. Their low.
