RURG50120 - 50A/ 1200V Ultrafast Diode

Description

only.

Intersil Corporation reserves the right to make changes in circuit design and/or specifications at any time without notice.

Accordingly, the reader is cautioned to verify that data sheets are current before placing orders.

Features

  • Ultrafast with Soft Recovery.
  • .

📥 Download Datasheet

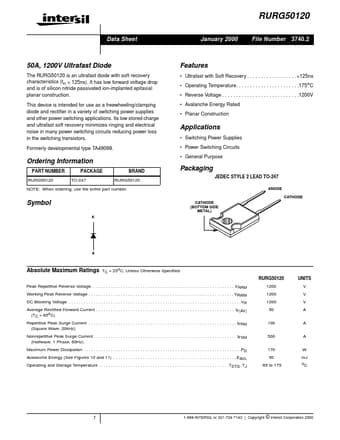

Datasheet preview – RURG50120

📁 Similar Datasheet

  • RURG5060 - 50A/ 600V Ultrafast Diode (Fairchild Semiconductor)
  • RURG1520 - 15A GLASS PASSIVATED SUPERFAST RECTIFIER (WON-TOP)
  • RURG1520CC - 15A/ 200V Ultrafast Dual Diode (Fairchild Semiconductor)
  • RURG1540 - 15A GLASS PASSIVATED SUPERFAST RECTIFIER (WON-TOP)
  • RURG1540CC - 15A/ 400V - 600V Ultrafast Dual Diodes (Fairchild Semiconductor)
  • RURG1560 - 15A GLASS PASSIVATED SUPERFAST RECTIFIER (WON-TOP)
  • RURG1560 - 15A/ 400V - 600V Ultrafast Dual Diodes (Fairchild Semiconductor)
  • RURG1560CC - 15A/ 400V - 600V Ultrafast Dual Diodes (Fairchild Semiconductor)
  • RURG3010 - Ultrafast Diodes (HARRIS)
  • RURG3015 - Ultrafast Diodes (HARRIS)
Other Datasheets by Intersil Corporation

Full PDF Text Transcription

Click to expand full text
RURG50120 Data Sheet January 2000 File Number 3740.2 50A, 1200V Ultrafast Diode The RURG50120 is an ultrafast diode with soft recovery characteristics (trr < 125ns). It has low forward voltage drop and is of silicon nitride passivated ion-implanted epitaxial planar construction. This device is intended for use as a freewheeling/clamping diode and rectifier in a variety of switching power supplies and other power switching applications. Its low stored charge and ultrafast soft recovery minimizes ringing and electrical noise in many power switching circuits reducing power loss in the switching transistors. Formerly developmental type TA49099. Features • Ultrafast with Soft Recovery . . . . . . . . . . . . . . . . . . <125ns • Operating Temperature. . . . . . . . . . . . . . . . . . . . . .
