ST-114 Downconverter Evaluatiuon Board

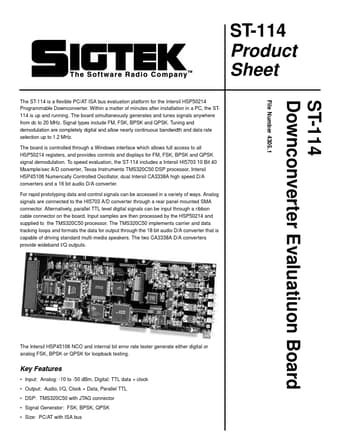

ST-114 Product Sheet The ST-114 is a ﬂexible PC/AT ISA bus evaluation platform for the Intersil HSP50214 Programmable Downconverter. Within a matter of minutes after installation in a PC, the ST114 is up and running. The board simultaneously generates and tunes signals anywhere from dc to 20 MHz. Signal types include FM, FSK, BPSK and QPSK. Tuning and demodulation are completely digital and allow nearly continuous bandwidth and data rate selection up to 1.2 MHz. The board is controlled through a.

ST-114 Features

* Input: Analog: -10 to -50 dBm, Digital: TTL data + clock

* Output: Audio, I/Q, Clock + Data, Parallel TTL

* DSP: TMS320C50 with JTAG connector

* Signal Generator: FSK, BPSK, QPSK

* Size: PC/AT with ISA bus ST-114 Intersil HSP50214 Downconverter Evaluation B
