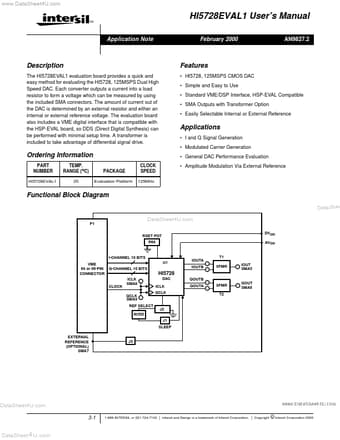

www.DataSheet4U.com HI5728EVAL1 User’s Manual TM Application Note February 2000 AN9827.2 .
The HI5728EVAL1 evaluation board provides a quick and easy method for evaluating the HI5728, 125MSPS Dual High Speed DAC.

AN9827.2 Features

* HI5728, 125MSPS CMOS DAC
* Simple and Easy to Use
* Standard VME/DSP Interface, HSP-EVAL Compatible
* SMA Outputs with Transformer Option

AN9827.2 Applications

* I and Q Signal Generation
* Modulated Carrier Generation
* General DAC Performance Evaluation Ordering Information PART NUMBER HI5728EVAL1 TEMP. RANGE (oC) 25 PACKAGE Evaluation Platform CLOCK SPEED 125MHz
* Amplitude Modulation Via External Reference Functional
