CA3039 - Diode Array

Datasheet Summary

Description

The CA3039 consists of six ultra-fast, low capacitance diodes on a common monolithic substrate.

Integrated circuit construction assures excellent static and dynamic matching of the diodes, making the array extremely useful for a wide variety of applications in communication and switching systems.

Features

  • Six Matched Diodes on a Common Substrate.
  • Excellent Reverse Recovery Time.
  • . . . . 1ns (Typ).
  • VF Match.
  • . . . 5mV (Max).
  • Low Capacitance.
  • . CD = 0.65pF (Typ) at VR = -2V.

📥 Download Datasheet

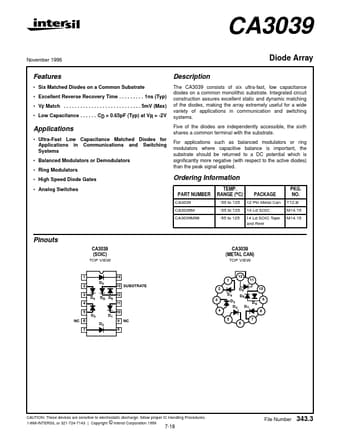

Datasheet preview – CA3039

Datasheet Details

Part number CA3039
Manufacturer Intersil
File Size 27.54 KB
Description Diode Array
Datasheet download datasheet CA3039 Datasheet
Additional preview pages of the CA3039 datasheet.

📁 Similar Datasheet

  • CA3030A - (CA3010A - CA3030A) Operational Amplifiers (Harris Semiconductor)
  • CA3033 - (CA3033 / CA3047) Operational Amplifiers (RCA Solid State)
  • CA3035 - Ultra-High-Gain Wide-Band Amplifier Array (ETC)
  • CA3035V1 - Ultra-High-Gain Wide-Band Amplifier Array (ETC)
  • CA3000 - High-Reliablility CA3000 Slash-Series Linear ICs (ETC)
  • CA3001 - High Reliability Video Amplifier (RCA Solid State)
  • CA3001 - Video and Wide Bane Amplifier (General Electric Solid State)
  • CA3001 - (CA30xx) Differential Amplifiers (RCA Solid State)
  • CA3002 - IF Amplifier (Harris Semiconductor)
  • CA3002 - High Reliability IF Amplifier (RCA Solid State)
Other Datasheets by Intersil
  • CA3019 - ULTRA-FAST LOW-CAPACLTANCE MATCHED DIODES
  • CA3020 - 8MHz Power Amps
  • CA3020A - 8MHz Power Amps For Military / Industrial and Commercial Equipment
  • CA3028A - Differential/Cascode Amplifier
  • CA3045 - General Purpose NPN Transistor Arrays
  • CA3046 - General Purpose NPN Transistor Arrays
  • CA3054 - Dual Independent Differential Amp for Low Power Applications from DC to 120MHz
  • CA3059 - Zero-Voltage Switches

Full PDF Text Transcription

Click to expand full text
CA3039 November 1996 Diode Array Description The CA3039 consists of six ultra-fast, low capacitance diodes on a common monolithic substrate. Integrated circuit construction assures excellent static and dynamic matching of the diodes, making the array extremely useful for a wide variety of applications in communication and switching systems. Five of the diodes are independently accessible, the sixth shares a common terminal with the substrate. For applications such as balanced modulators or ring modulators where capacitive balance is important, the substrate should be returned to a DC potential which is significantly more negative (with respect to the active diodes) than the peak signal applied. Features • Six Matched Diodes on a Common Substrate • Excellent Reverse Recovery Time . . . . .
