CA3078 2MHz / Micropower Operational Amplifier

CA3078 Description

CA3078, CA3078A Data Sheet December 1998 File Number 535.5 2MHz, Micropower Operational Amplifier The CA3078 and CA3078A are high gain monolithic oper.

CA3078 Features

* Low Standby Power
* As Low As 700nW
* Wide Supply Voltage Range
* . ±0.75V to ±15V
* High Peak Output Current
* 6.5mA (Min)
* Adjustable Quiescent Current
* Output Short Circuit Protection App

CA3078 Applications

* Portable Electronics
* Telemetry
* Medical Electronics
* Intrusion Alarms
* Instrumentation Pinouts CA3078 (PDIP, SOIC) TOP VIEW Ordering Information PART NUMBER TEMP. (BRAND) RANGE (oC) CA3078AE CA3078AM (3078A) CA3078AM96 (3078A) CA3078AT CA3078E CA3078M

📥 Download Datasheet

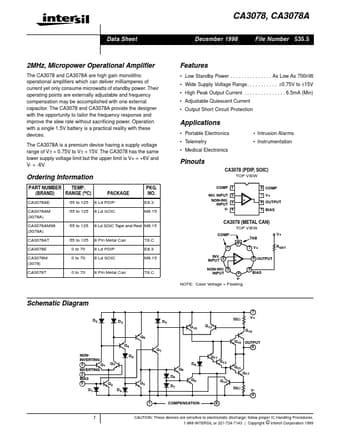

Preview of CA3078 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CA3078
Manufacturer
Intersil
File Size
152.49 KB
Datasheet
CA3078_Intersil.pdf
Description
2MHz / Micropower Operational Amplifier
