ICL7104

14-Bit/16-Bit/ Microprocessor- Compatible/ 2-Chip/ A/D Converter

ICL7104 Features

* 16-Bit/14-Bit Binary Three-State Latched Outputs Plus Polarity and Overrange

* Ideally Suited for Interface to UARTs and Microprocessors

* Conversion on Demand or Continuously

* Guaranteed Zero Reading for 0V Input

* True Polarity at Zero Count for Precise N

ICL7104 General Description

The ICL7104, combined with the ICL8052 or ICL8068, forms a member of Intersil’ high performance A/D converter family. The ICL7104-16, performs the analog switching and digital function for a 16-bit binary A/D converter, with full three-state output, UART handshake capability, and other outputs for e.

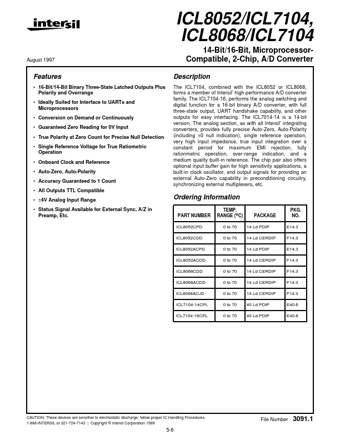

ICL7104 Datasheet (198.67 KB)

Preview of ICL7104 PDF

Datasheet Details

Part number:

ICL7104

Manufacturer:

Intersil

File Size:

198.67 KB

Description:

14-bit/16-bit/ microprocessor- compatible/ 2-chip/ a/d converter.
