ISL75054M - Radiation Tolerant Ultra Low Noise 1A LDO

Description

The ISL75054M is a radiation tolerant low dropout linear regulator with ultra-low noise and high PSRR intended for ADC, RF, and other noise sensitive applications.

The device has an operating supply voltage range of 2.7V to 30V and an output voltage range of 0.5V to VIN - VDO.

Features

  • excellent noise performance and PSRR for radiation tolerant LDOs, with ultra-low RMS noise of 3.9μVRMS from 10Hz to 100kHz and ultrahigh PSRR of 104dB at 120Hz. The ISL75054M is fabricated on a Silicon-On Insulator (SOI) process which makes it latch-up free. The ISL75054M is offered in a 16 lead heatsink thin shrink small outline package (HTSSOP) and operates across the full military temperature range of -55°C to +125°C.

📥 Download Datasheet

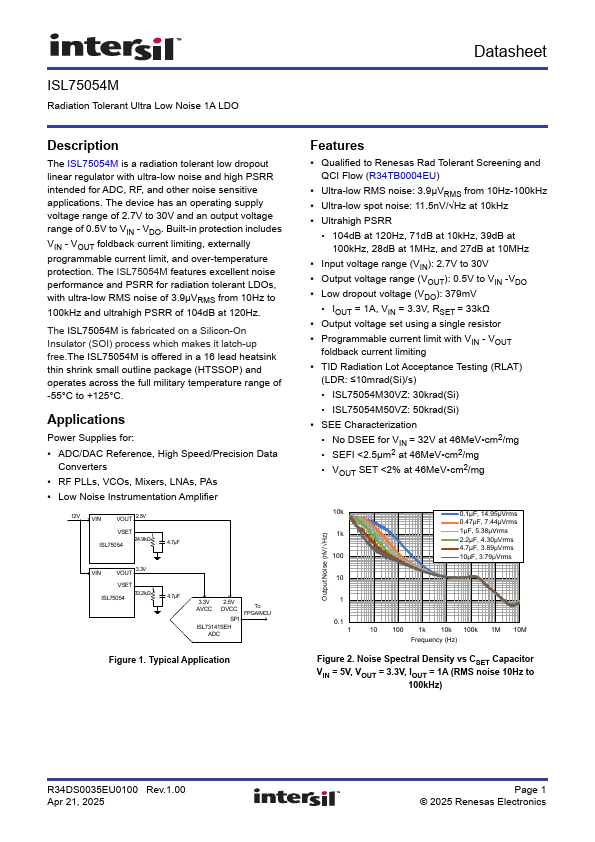

Datasheet preview – ISL75054M

Datasheet Details

Part number ISL75054M
Manufacturer Intersil
File Size 3.01 MB
Description Radiation Tolerant Ultra Low Noise 1A LDO
Datasheet download datasheet ISL75054M Datasheet

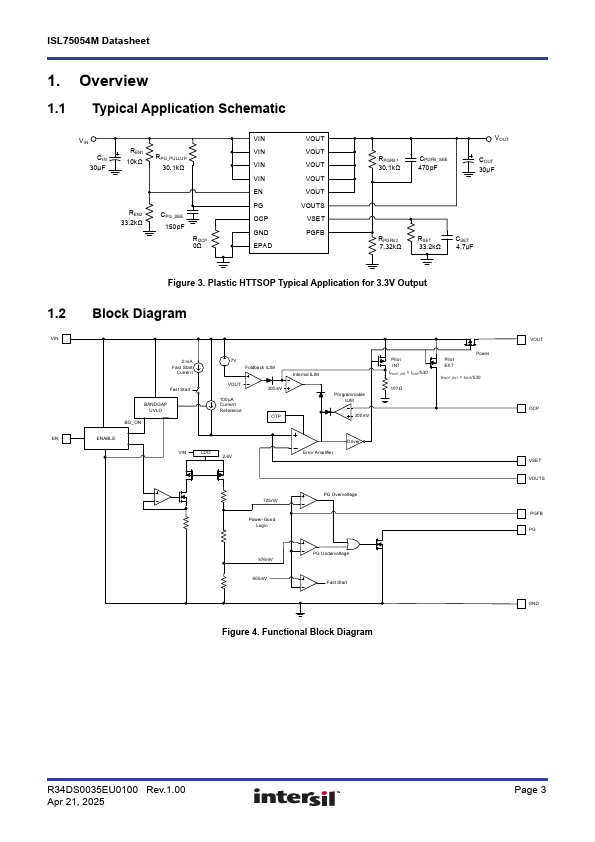

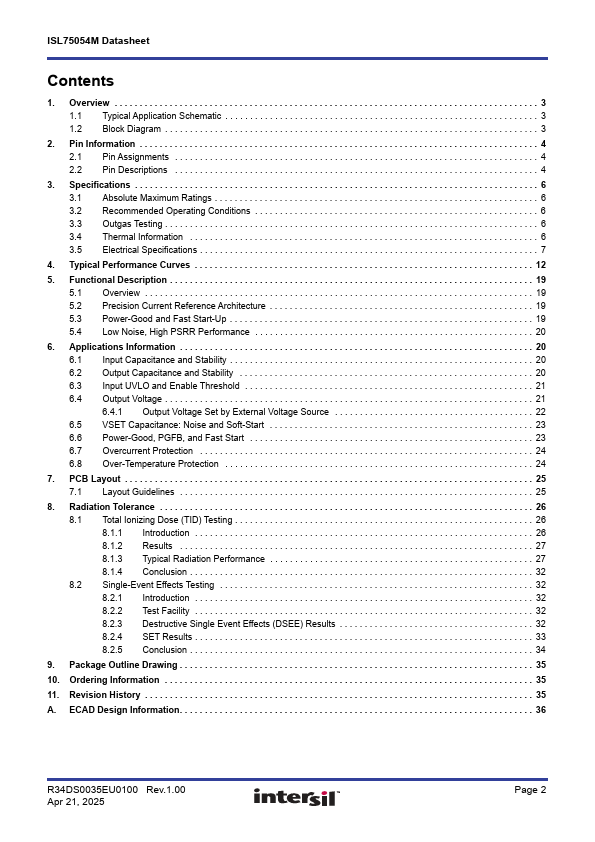

Additional preview pages of the ISL75054M datasheet.

📁 Similar Datasheet

  • ISL70001SRH - Radiation Hardened and SEE Hardened 6A Synchronous Buck Regulator (Intersil Corporation)
  • ISL71090SEHF25 - Radiation Hardened Ultra Low Noise / Precision Voltage Reference (Intersil Corporation)
  • ISL7119RH - Radiation Hardened High Speed Dual Voltage Comparator (Intersil Corporation)
  • ISL7124SRH - Quad Operational Amplifiers (Intersil Corporation)
  • ISL72026SEH - 3.3V Radiation Tolerant CAN Transceiver (Intersil Corporation)
  • ISL72027SEH - 3.3V Radiation Tolerant CAN Transceiver (Intersil Corporation)
  • ISL72028SEH - 3.3V Radiation Tolerant CAN Transceiver (Intersil Corporation)
  • ISL72991RH - Radiation Hardened Negative Low Dropout Adjustable Voltage Regulator (Intersil Corporation)
  • ISL73096RH - Radiation Hardened Ultra High Frequency NPN/PNP Transistor (Intersil Corporation)
  • ISL73127RH - Radiation Hardened Ultra High Frequency NPN/PNP Transistor (Intersil Corporation)
Other Datasheets by Intersil

Full PDF Text Transcription

Click to expand full text
ISL75054M Radiation Tolerant Ultra Low Noise 1A LDO Datasheet Description The ISL75054M is a radiation tolerant low dropout linear regulator with ultra-low noise and high PSRR intended for ADC, RF, and other noise sensitive applications. The device has an operating supply voltage range of 2.7V to 30V and an output voltage range of 0.5V to VIN - VDO. Built-in protection includes VIN - VOUT foldback current limiting, externally programmable current limit, and over-temperature protection. The ISL75054M features excellent noise performance and PSRR for radiation tolerant LDOs, with ultra-low RMS noise of 3.9μVRMS from 10Hz to 100kHz and ultrahigh PSRR of 104dB at 120Hz. The ISL75054M is fabricated on a Silicon-On Insulator (SOI) process which makes it latch-up free.
