MD82C55A - CMOS Programmable Peripheral Interface

General Description

The Intersil 82C55A is a high performance CMOS version of the industry standard 8255A and is manufactured using a self-aligned silicon gate CMOS process (Scaled SAJI IV).

It is a general purpose programmable I/O device which may be used with many different microprocessors.

Key Features

  • Pin Compatible with NMOS 8255A.
  • 24 Programmable I/O Pins.
  • Fully TTL Compatible.
  • High Speed, No “Wait State” Operation with 5MHz and 8MHz 80C86 and 80C88.
  • Direct Bit Set/Reset Capability.
  • Enhanced Control Word Read Capability.
  • L7 Process.
  • 2.5mA Drive Capability on All I/O Ports.
  • Low Standby Power (ICCSB).
  • . .10µA Ordering Information PART.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MD82C55A CMOS Programmable Peripheral Interface Harris
MD82C55A-5 CMOS Programmable Peripheral Interface Harris
MD82C55B CMOS Programmable Peripheral Interface Harris
MD82C52 CMOS Serial Controller Interface Renesas
MD82C52B CMOS Serial Controller Interface Renesas

Other Datasheets by Intersil (Renesas)

Part Number Description
MD82C55A-5 CMOS Programmable Peripheral Interface
MD82C55A-5B CMOS Programmable Peripheral Interface
MD82C55AB CMOS Programmable Peripheral Interface
MD82C50A-5 CMOS Asynchronous Communications Element
MD82C50A-5B CMOS Asynchronous Communications Element

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

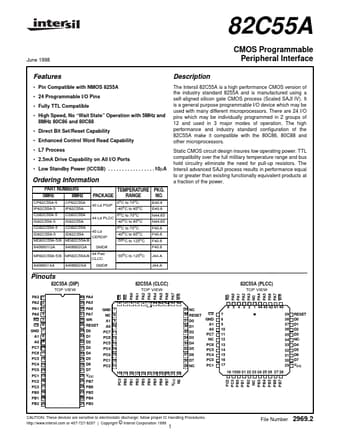

82C55A June 1998 CMOS Programmable Peripheral Interface Description The Intersil 82C55A is a high performance CMOS version of the industry standard 8255A and is manufactured using a self-aligned silicon gate CMOS process (Scaled SAJI IV). It is a general purpose programmable I/O device which may be used with many different microprocessors. There are 24 I/O pins which may be individually programmed in 2 groups of 12 and used in 3 major modes of operation. The high performance and industry standard configuration of the 82C55A make it compatible with the 80C86, 80C88 and other microprocessors. Static CMOS circuit design insures low operating power. TTL compatibility over the full military temperature range and bus hold circuitry eliminate the need for pull-up resistors.
