CA-PLCC20-Z-M-T-01 Datasheet - Ironwood Electronics

PLCC Carrier Adaptor

CA-PLCC20-Z-M-T-01 General Description

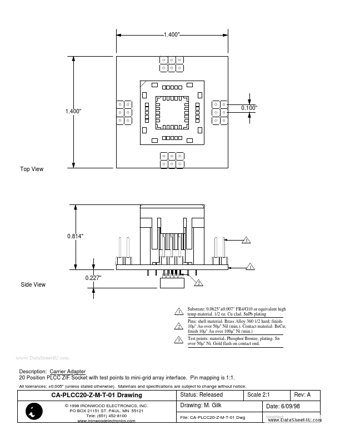

Carrier Adapter 20 Position PLCC ZIF Socket with test points to mini-grid array interface. Pin mapping is 1:1. All tolerances: ±0.005" (unless stated otherwise). Materials and specifications are subject to change without notice. CA-PLCC20-Z-M-T-01 Drawing © 1998 IRONWOOD ELECTRONICS, INC. PO BOX 2.

CA-PLCC20-Z-M-T-01 Datasheet (42.24 KB)

Preview of CA-PLCC20-Z-M-T-01 PDF

Datasheet Details

Part number:

CA-PLCC20-Z-M-T-01

Manufacturer:

Ironwood Electronics

File Size:

42.24 KB

Description:

Plcc carrier adaptor.
1.400" 1.400" 0.100" Top View 0.814" 3 1 0.227" Side View 2 1 2 3 Substrate: 0.0625"±0.007" FR4/G10 or equivalent high temp material. 1/2 oz. .
