RT1P141C - Transistor

This page provides the datasheet information for the RT1P141C, a member of the RT1P141x Transistor family.

Datasheet Summary

Description

RT1P141X is a one chip transistor with built-in bias resistor,NPN type is RT1N141X.

Built-in bias resistor (R1=10kΩ,R2=10kΩ).

Inverted circuit,switching circuit,interface circuit, driver circuit.

Datasheet Details

Part number	RT1P141C
Manufacturer	Isahaya Electronics Corporation
File Size	150.55 KB
Description	Transistor
Datasheet	RT1P141C Datasheet
Additional preview pages of the RT1P141C datasheet.

📁 Similar Datasheet

RT1P137L - TRANSISTOR WITH RESISTOR FOR SWITCHING APPLICATION SILICON PNP EPITAXIAL TYPE (ETC)

RT1P137P - SWITCHING SILICON PNP EPITAXIAL TRANSISTOR (ETC)

RT1P137S - RT1P137S (ETC)

RT1P15BC - Transistor (Isahaya Electronics)

RT1P15BM - Transistor (Isahaya Electronics)

RT1P15BS - Transistor (Isahaya Electronics)

RT1P15BU - Transistor (Isahaya Electronics)

RT1P237x - Transistor (ETC)

RT100 - Wirewound Rheostat/Potentiometer (Vishay Siliconix)

RT100KP100A - Preferred 100 kW Transient Voltage Suppressor (Microsemi Corporation)

Full PDF Text Transcription

Click to expand full text

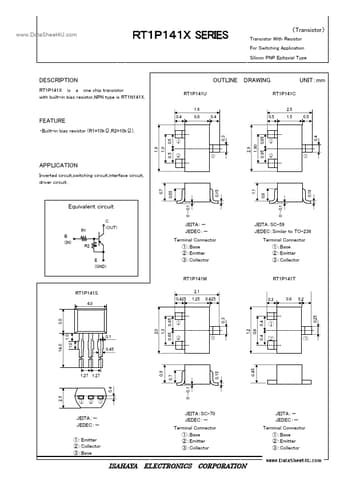

www.DataSheet4U.com ＲＴ１Ｐ１４１Ｘ SERIES 〈Transistor〉 Transistor With Resistor For Switching Application Silicon PNP Epitaxial Type DESCRIPTION RT1P141X is a one chip transistor with built-in bias resistor,NPN type is RT1N141X. FEATURE Built-in bias resistor (R1=10kΩ,R2=10kΩ). APPLICATION Inverted circuit,switching circuit,interface circuit, driver circuit. 1.6 1.0 0.5 0.5 0.3 2.9 1.90 0.95 0.95 0.4 OUTLINE DRAWING UNIT：mm RT1P141U RT1P141C 1.6 0.4 0.8 0.4 2.5 0.5 1.5 0.5 ① ②③ ① ②③ 0.7 0.55 0～0.1 0.15 1.1 0.8 0～0.1 0.16 Equivalent circuit R1 B (IN) R2 C (OUT) E (GND) RT1P141S 4.0 0.1 0.45 2.0 1.3 0.65 0.65 0.3 1.2 0.8 0.4 0.4 JEITA：－ JEDEC：－ Terminal Connector ①：Base ②：Emitter ③：Collector RT1P141M 2.1 0.425 1.25 0.
