2SA1530A - Transistor

Datasheet Summary

Description

2SA1530A is a super mini package resin sealed silicon PNP epitaxial transistor, It is designed for low frequency voltage application.

Small collector to emitter saturation voltage.

Excellent linearity of DC forwar

Isahaya Electronics

📥 Download Datasheet

Datasheet Details

Part number	2SA1530A
Manufacturer	Isahaya Electronics
File Size	456.82 KB
Description	Transistor
Datasheet	2SA1530A Datasheet
Additional preview pages of the 2SA1530A datasheet.

📁 Similar Datasheet

2SA1531 - Silicon PNP Transistor (Panasonic Semiconductor)
2SA1531A - Silicon PNP Transistor (Panasonic Semiconductor)
2SA1531A - Transistor (Kexin)
2SA1532 - Silicon PNP Transistor (Panasonic Semiconductor)
2SA1532 - Transistor (Kexin)
2SA1532 - Transistor (TY Semiconductor)
2SA1533 - Silicon PNP Transistor (Panasonic Semiconductor)
2SA1534 - Silicon PNP Transistor (Panasonic Semiconductor)
2SA1534A - Silicon PNP Transistor (Panasonic Semiconductor)
2SA1535 - Silicon PNP Transistor (Panasonic Semiconductor)

Other Datasheets by Isahaya Electronics

2SA1284 - Silicon PNP Epitaxial Type Transistor
2SA1363 - Small Signal Transistor
2SA1366 - Small Signal Transistor
2SA1368 - Small Signal Transistor
2SA1398 - Silicon PNP Epitaxial Type Transistor
2SA1602 - Silicon PNP Transistor
2SA1603 - Silicon PNP Transistor
2SA1603A - Silicon PNP Transistor

Full PDF Text Transcription

Click to expand full text

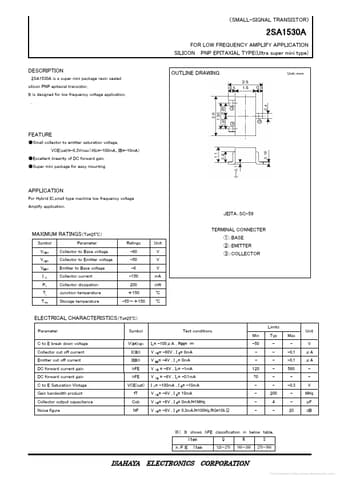

〈SMALL-SIGNAL TRANSISTOR〉 2SA1530A FOR LOW FREQUENCY AMPLIFY APPLICATION SILICON PNP EPITAXIAL TYPE(Ultra super mini type) DESCRIPTION 2SA1530A is a super mini package resin sealed silicon PNP epitaxial transistor, It is designed for low frequency voltage application. . OUTLINE DRAWING Unit：ｍｍ FEATURE ● Small collector to emitter saturation voltage. VCE(sat)=-0.3Vmax（@Ic=-100mA、IB=-10mA） ●Excellent linearity of DC forward gain. ●Super mini package for easy mounting APPLICATION For Hybrid IC,small type machine low frequency voltage Amplify application.
