MC2838 Datasheet - Isahaya

MC2838 SMALL-SIGNAL DIODE

MC2838 is a super mini package plastic seal type silicon epitaxial type double diode, especially designed for high speed switching application. Due to the small pin capacitance, short switching time (reverse recovery time), It is most suitable for high speed switching application and limitter, clipp.

MC2838 Datasheet (164.70 KB)

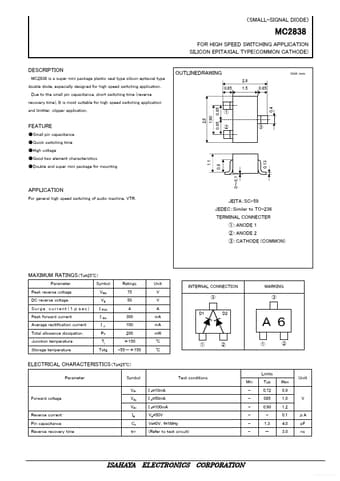

Preview of MC2838 PDF
MC2838 Datasheet Preview Page 2 MC2838 Datasheet Preview Page 3

Datasheet Details

Part number:

MC2838

Manufacturer:

Isahaya

File Size:

164.70 KB

Description:

Small-signal diode.
