RDM8800 Datasheet - Itead Studio

RDM8800 - NFC/RFID Module

Power input Ground Unoccupied 10th, Dec., 2013 3 Tech Support: support@iteadstudio.com Pin4 Pin5 Pin1 P2 Pin2 Pin3 Pin1 P3 Pin2 Pin1 Pin2 Pin3 P4 Pin4 Pin5 Pin6 RX(TTL) TX(TTL) LED +5V(DC) GND ANT1 ANT2 SWD 3.3V SWC NC RST GND UART input UART output Interrupt pin Power output Ground Antenna int

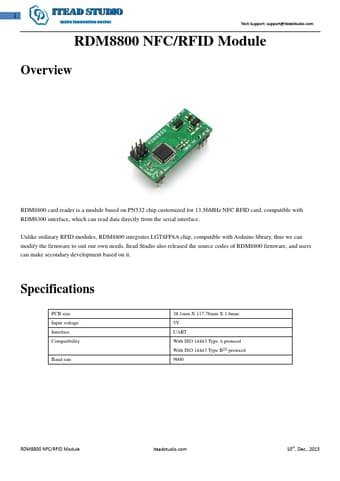

1 Tech Support: support@iteadstudio.com RDM8800 NFC/RFID Module Overview RDM8800 card reader is a module based on PN532 chip customized for 13.56MHz NFC RFID card, compatible with RDM6300 interface, which can read data directly from the serial interface.

Unlike ordinary RFID modules, RDM8800 integrates LGT8FF8A chip, compatible with Arduino library, thus we can modify the firmware to suit our own needs.

Itead Studio also released the source codes of RDM8800 firmware, and users can make secondar

RDM8800-IteadStudio.pdf

Preview of RDM8800 PDF
RDM8800 Datasheet Preview Page 2 RDM8800 Datasheet Preview Page 3

Datasheet Details

Part number:

RDM8800

Manufacturer:

Itead Studio

File Size:

331.87 KB

Description:

Nfc/rfid module.
