iT5083 Datasheet - Iterra

RZ modulator driver amplifier

iT5083 Features

* Optimized for RZ bit rates up to 11.4 Gb/s Non-inverted RZ signal 20 dB gain 4.5 Vpp output amplitude 8 V bias supply AC-coupled RF inputs and outputs Absolute Maximum Ratings Symbol +V Parameter Positive supply voltage Negative supply voltage Input data amplitude Amplitude control voltage Cross

iT5083 General Description

The iT5083 is a general-purpose modulator driver designed for RZ communication systems operating up to 11.4 Gb/s. The driver is typically used to amplify a data signal between an NRZ/RZ encoder and an optical modulator. The iT5083 is available in an SMA connectorized module. The primary heat conduct.

iT5083 Datasheet (101.06 KB)

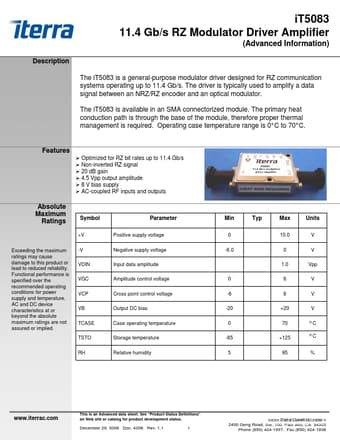

iT5083 Datasheet Preview — Preview of iT5083 PDF

Datasheet Details

Part number:

iT5083

Manufacturer:

Iterra

File Size:

101.06 KB

Description:

Rz modulator driver amplifier.
