iT6144 Duobinary encoder and driver amplifier

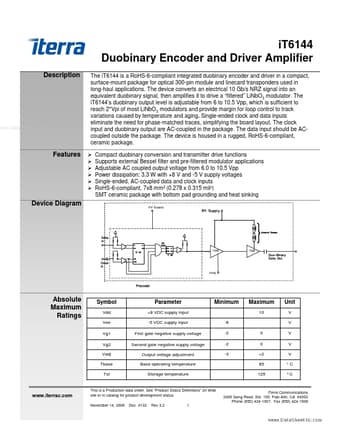

📥 Download Datasheet  Datasheet Preview Page 1

Description

iT6144 Duobinary Encoder and Driver Amplifier .
The iT6144 is a RoHS-6-compliant integrated duobinary encoder and driver in a compact, surface-mount package for optical 300-pin module and linecard t.

📥 Download Datasheet

Preview of iT6144 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
iT6144
Manufacturer
Iterra
File Size
89.41 KB
Datasheet
iT6144_Iterra.pdf
Description
Duobinary encoder and driver amplifier

Features

* Device Diagram 13dB 13dB Vadj Absolute Maximum Ratings Symbol Vdd Vee Vg1 Vg2 Vadj Tbase Tst Parameter +8 VDC supply input -5 VDC supply input First gate negative supply voltage Second gate negative supply voltage Output voltage adjustment Base operating temperature Storage temperature Minim

Applications

* The device converts an electrical 10 Gb/s NRZ signal into an equivalent duobinary signal, then amplifies it to drive a “filtered” LiNbO3 modulator. The iT6144’s duobinary output level is adjustable from 6 to 10.5 Vpp, which is sufficient to reach 2
* Vpi of most LiNbO3 modulators and provide marg
