DC3R019JA7 HDMI Standard Type D HDMI Micro Connector

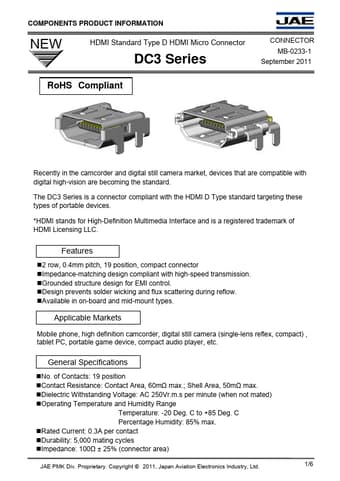

COMPONENTS PRODUCT INFORMATION NEW HDMI Standard Type D HDMI Micro Connector CONNECTOR MB-0233-1 September 2011 DC3 Series RoHS　Compliant Recently in the camcorder and digital still camera market, devices that are compatible with digital high-vision are becoming the standard. The DC3 Series is a connector compliant with the HDMI D Type standard targeting these types of portable devices. HDMI stands for High-Definition Multimedia Interface and is a registered trademark of HDMI Licensing.

DC3R019JA7 Features

* www.DataSheet.net/

* 2 row, 0.4mm pitch, 19 position, compact connector

* Impedance-matching design compliant with high-speed transmission.

* Grounded structure design for EMI control.

* Design prevents solder wicking and flux scattering during reflow.

* Availabl
