B1020X - SCHOTTKY BARRIER DIODE

Features

  • Low Forward Voltage Drop.
  • Surface Mount Package Ideally Suited For Automatic Insertion.

📥 Download Datasheet

Datasheet preview – B1020X

Datasheet Details

Part number B1020X
Manufacturer JCET
File Size 812.84 KB
Description SCHOTTKY BARRIER DIODE
Datasheet download datasheet B1020X Datasheet
Additional preview pages of the B1020X datasheet.

📁 Similar Datasheet

  • B1020 - 2SB1020 (JMnic)
  • B1020A - 2SB1020A (Toshiba Semiconductor)
  • B1022 - 2SB1022 (SavantIC)
  • B1022Axx - FEMALE HEADER PROFILE : 8.6mm STRAIGHT (DB Lectro)
  • B1024 - 2SB1024 (SavantIC)
  • B10011S - CAN TRANSCEIVER (ATMEL Corporation)
  • B1007 - 2SB1007 (SavantIC)
  • B1008 - Epitaxial Planar PNP Silicon Transistor (Rohm)
  • B100NF04L - STB100NF04L (STMicroelectronics)
  • B100xxL - Led Display Master Green (ETC)
Other Datasheets by JCET
  • B1040W - SCHOTTKY BARRIER DIODE
  • B1040WS - SCHOTTKY BARRIER DIODE

Full PDF Text Transcription

Click to expand full text

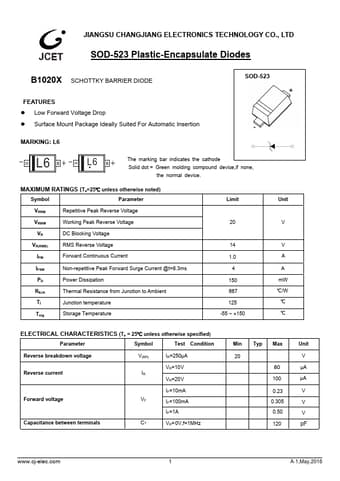

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD SOD-523 Plastic-Encapsulate Diodes B1020X SCHOTTKY BARRIER DIODE SOD-523 FEATURES  Low Forward Voltage Drop  Surface Mount Package Ideally Suited For Automatic Insertion MARKING: L6 L6 L6 The marking bar indicates the cathode Solid dot = Green molding compound device,if none, the normal device. MAXIMUM RATINGS (Ta=25℃ unless otherwise noted) Symbol Parameter VRRM VRWM VR VR(RMS) IFM Repetitive Peak Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Forward Continuous Current IFSM PD RθJA Tj Non-repetitive Peak Forward Surge Current @t=8.3ms Power Dissipation Thermal Resistance from Junction to Ambient Junction temperature Tstg Storage Temperature Limit 20 14 1.
