CJ432E Datasheet - JCET

CJ432E - Adjustable Precision Zener Shunt Regulator

JIANGSU CHANGJING ELECTRONICS TECHNOLOGY CO., LTD.

Adjustable Precision Zener Shunt Regulators CJ432E Voltage References 1 Introduction The CJ432E is a three terminal adjustable precision Zener shunt regulator with guaranteed thermal stability over a full operation range.

It has sharp turnon characteristics, low temperature coefficient and low output impedance, and the output voltage can be set to any value between VREF and maximum cathode voltage by selecting two external resistors acting as v

CJ432E Features

* Adjustable Output Voltage: VREF to 18 V

* Reference Voltage Tolerance at 25°C: Available in ±0.5% or ±1.0% Grade

* Sink-current Capability: 0.1 ~ 100mA

* Excellent Temperature Performance: Op TA: -40 ~ 125°C Low Drift: 6mV (Typ.) Temperature Coefficient: 30 ppm/°C

CJ432E-JCET.pdf

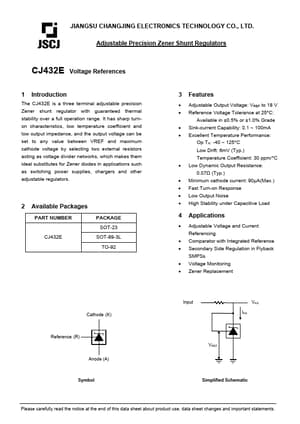

Preview of CJ432E PDF
CJ432E Datasheet Preview Page 2 CJ432E Datasheet Preview Page 3

Datasheet Details

Part number:

CJ432E

Manufacturer:

JCET

File Size:

1.44 MB

Description:

Adjustable precision zener shunt regulator.
