CJMNT31

PNP Power Transistor

JCET

Download Datasheet (941.95 KB)

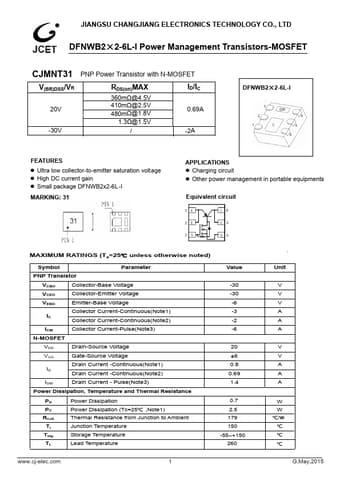

CJMNT31 Datasheet Preview — Preview of CJMNT31 Datasheet

Datasheet Details

Part number:

CJMNT31

Manufacturer:

JCET

File Size:

941.95 KB

Description:

Pnp power transistor.
JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD DFNWB2×2-6L-I Power Management Transistors-MOSFET.
CJMNT31 PNP Power Transistor with N-MOSFET V(BR)DSS/VR 20V -30V RDS(on)MAX 360mΩ@4.5V 410mΩ@2.5V.

✔ CJMNT31 Features

z Ultra low collector-to-emitter saturation voltage z High DC current gain z Small package DFNWB2x2-6L-I MARKING: 31 APPLICATIONS z Charging circuit z Other power manage

✔ CJMNT31 Application

z Charging circuit z Other power management in portable equipments Equivalent circuit MAXIMUM RATINGS (Ta=2
