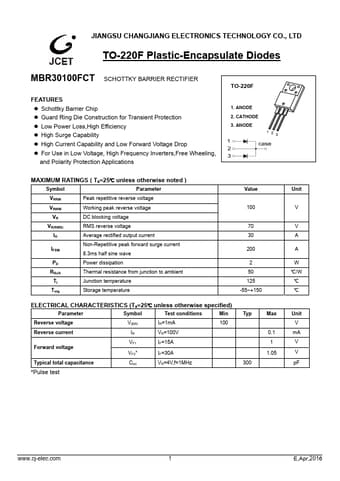

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD
TO-220F Plastic-Encapsulate Diodes
MBR30100FCT SCHOTTKY BARRIER RECTIFIER
FEATURES z Schottky Barrier Chip z Guard Ring Die Construction for Transient Protection z Low Power Loss,High Efficiency z High Surge Capability z High Current Capability and Low Forward Voltage Drop z For Use in Low Voltage, High Frequency Inverters,Free Wheeling, and Polarity Protection Applications
TO-220F
1. ANODE 2. CATHODE 3. ANODE
123
MAXIMUM RATINGS ( Ta=25℃ unless otherwise noted )
Symbol
Parameter
VRRM
Peak repetitive reverse voltage
VRWM VR
VR(RMS) IO
Working peak reverse voltage DC blocking voltage RMS reverse voltage Average rectified output current
IFSM Non-Repetitive peak forward surge current 8.
