GL5537-1, GL5537, MINIATURE CADMIUM SULPHIDE PHOTOCONDUCTIVE CELL

GL5537 MINIATURE CADMIUM SULPHIDE PHOTOCONDUCTIVE CELL LIGHT DEPENDENT RESISTOR .

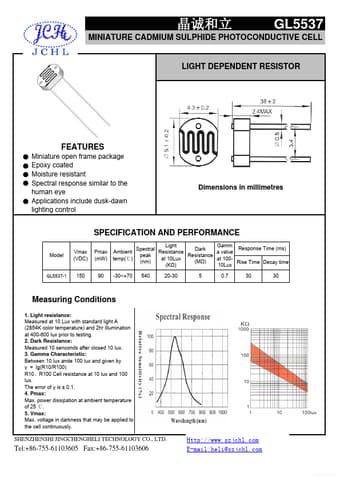

datasheet Preview Page 1 from Datasheet4u.com

GL5537_JCHL.pdf

GL5537-1 Datasheet Preview — This datasheet PDF includes multiple part numbers: GL5537-1, GL5537. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

GL5537-1, GL5537

Manufacturer:

JCHL

File Size:

231.16 KB

Description:

MINIATURE CADMIUM SULPHIDE PHOTOCONDUCTIVE CELL

Note:

This datasheet PDF includes multiple part numbers: GL5537-1, GL5537.
Please refer to the document for exact specifications by model.

Features

* Miniature open frame package Epoxy coated Moisture resistant Spectral response similar to the human eye

Applications

* include dusk-dawn lighting control
* Dimensions in millimetres SPECIFICATION AND PERFORMANCE Model Vmax (VDC) 150 Pmax (mW) 90 Ambient temp(℃) -30~+70 Light Gamm Response Time (ms) Dark Spectral Resistance a value Resistance peak at 10Lux at 100(MΩ) (nm) Rise Time Decay time
