DTC114TCA - NPN Digital Transistor

This page provides the datasheet information for the DTC114TCA, a member of the DTC114TE NPN Digital Transistor family.

Datasheet Summary

Features

  • Built-in bias resistors enable the configuration of an inverter circuit without connecting extemal input resistors.
  • The bias resistors conisit of thin-film resistors with complete isolation to negative biasing of the input. They also have the advantage of almost completely eliminating parasitic effects.
  • Only the on/off conditions need to be set for operation,marking device design easy PIN.

📥 Download Datasheet

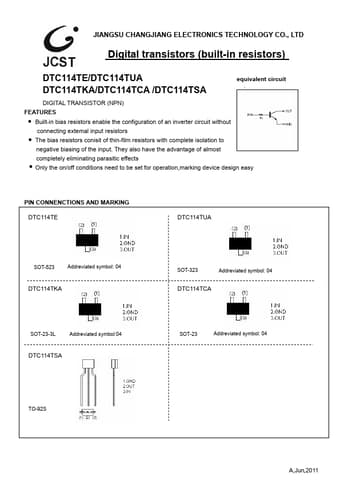

Datasheet preview – DTC114TCA

Datasheet Details

Part number DTC114TCA
Manufacturer JCST
File Size 413.71 KB
Description NPN Digital Transistor
Datasheet download datasheet DTC114TCA Datasheet
