TX18D211VM0BPA

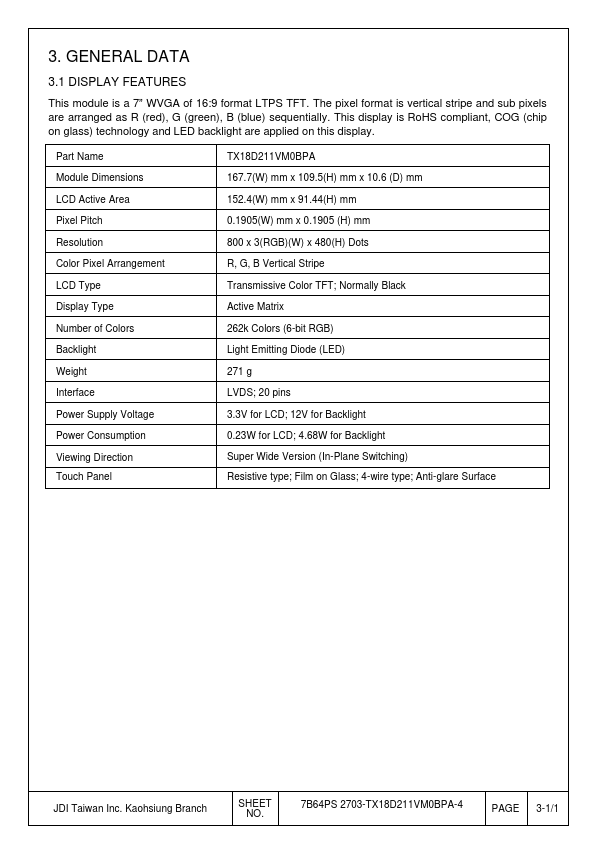

FEATURES
This module is a 7” WVGA of 16:9 format LTPS TFT. The pixel format is vertical stripe and sub pixels are arranged as R (red), G (green), B (blue) sequentially. This display is Ro HS pliant, COG (chip on glass) technology and LED backlight are applied on this display.
Part Name Module Dimensions LCD Active Area Pixel Pitch Resolution Color Pixel Arrangement LCD Type Display Type Number of Colors Backlight Weight Interface Power Supply Voltage Power Consumption Viewing Direction Touch Panel
TX18D211VM0BPA 167.7(W) mm x 109.5(H) mm x 10.6 (D) mm 152.4(W) mm x 91.44(H) mm 0.1905(W) mm x 0.1905 (H) mm 800 x 3(RGB)(W) x 480(H) Dots R, G, B Vertical Stripe Transmissive Color TFT; Normally Black Active Matrix 262k Colors (6-bit RGB) Light Emitting Diode (LED) 271 g LVDS; 20 pins 3.3V for LCD; 12V for Backlight 0.23W for LCD; 4.68W for Backlight Super Wide Version (In-Plane Switching) Resistive type; Film on Glass; 4-wire type; Anti-glare Surface
