Datasheet Details
- Part number
- TX18D216VM0BAC
- Manufacturer
- JDI
- File Size
- 574.92 KB
- Datasheet
- TX18D216VM0BAC-JDI.pdf
- Description
- WVGA of 16:9 format LTPS TFT
TX18D216VM0BAC Description

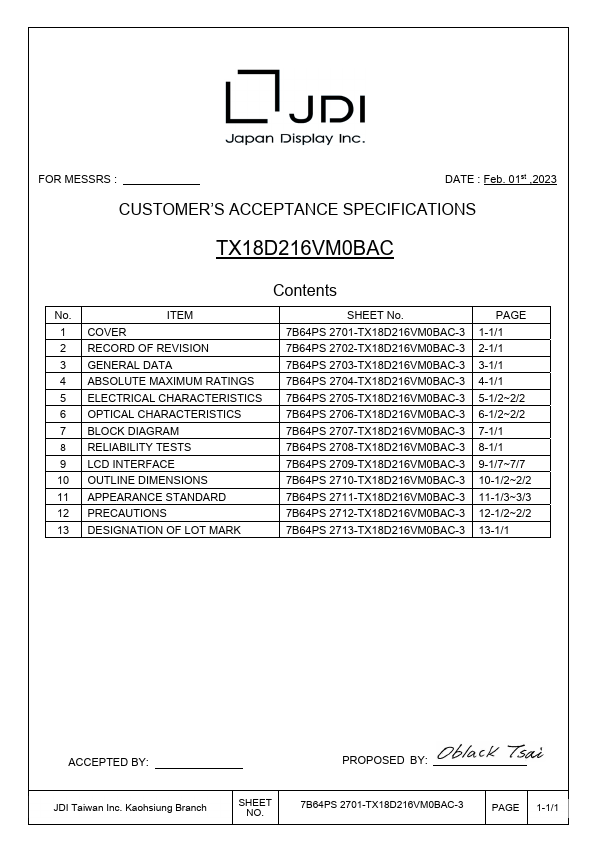

FOR MESSRS : DATE : Feb.01st ,2023 CUSTOMER’S ACCEPTANCE SPECIFICATIONS TX18D216VM0BAC Contents No.ITEM 1 COVER 2 RECORD OF REVISION 3 GENE.TX18D216VM0BAC Features

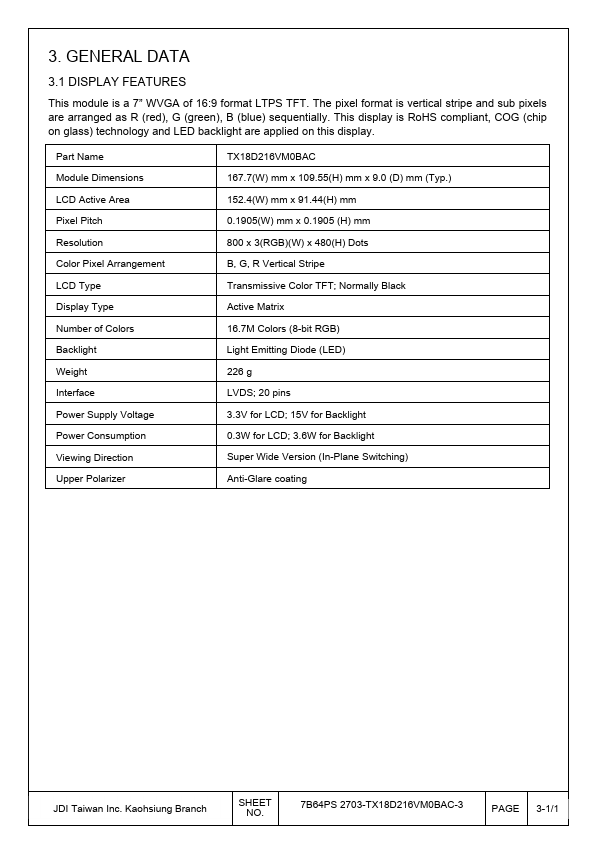

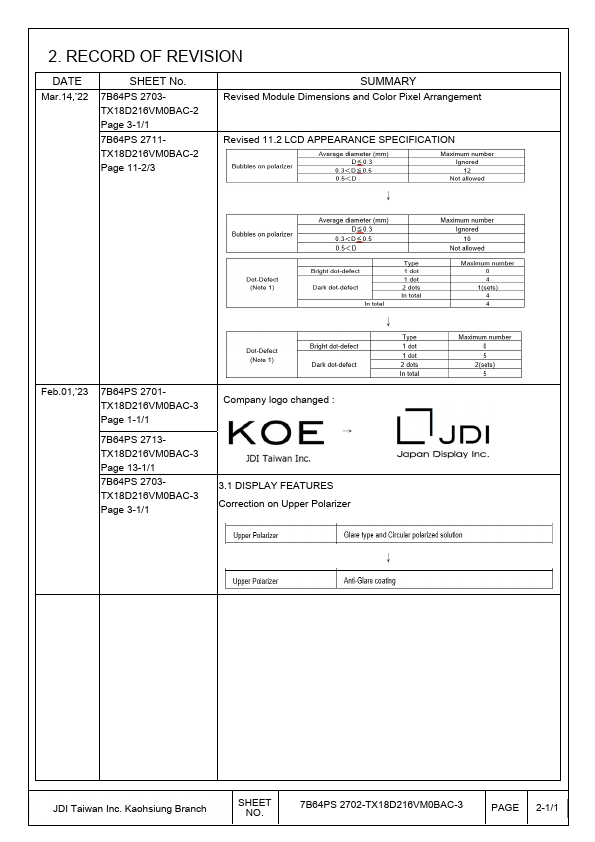

* Correction on Upper Polarizer ↓ JDI Taiwan Inc. Kaohsiung Branch SHEET NO. 7B64PS 2702-TX18D216VM0BAC-3 PAGE 2-1/1 3. GENERAL DATA 3.1 DISPLAY FEATURES This module is a 7” WVGA of 16:9 format LTPS TFT. The pixel format is vertical stripe and sub pixels are arranged as R (red), G (green), B (b
