TX20D207VM0AAA Datasheet (JDI) - WXGA of 16:9 format LTPS TFT

TX20D207VM0AAA, WXGA of 16:9 format LTPS TFT

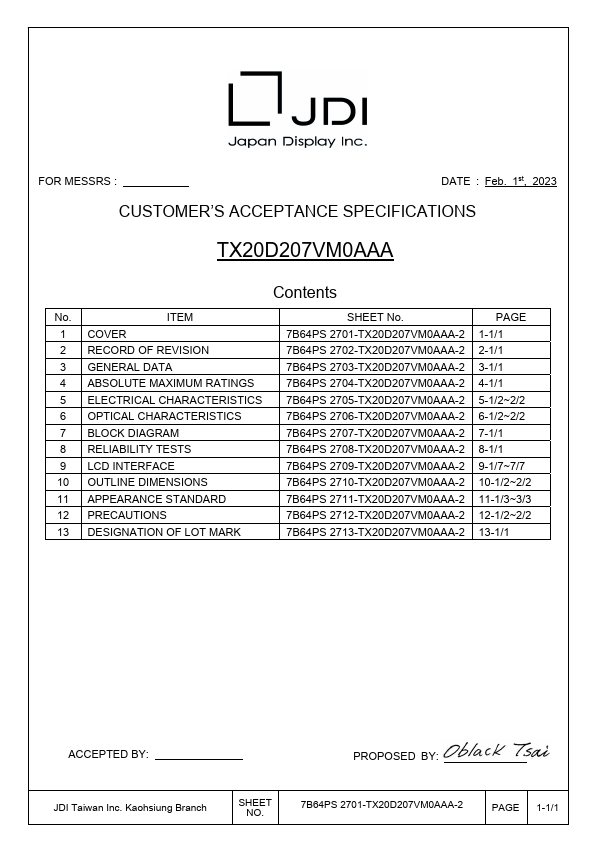

FOR MESSRS : DATE : Feb.

1st, 2023 CUSTOMER’S ACCEPTANCE SPECIFICATIONS TX20D207VM0AAA Contents No.

ITEM 1 COVER 2 RECORD OF REVISION 3 GENERAL DATA 4 ABSOLUTE MAXIMUM RATINGS 5 ELECTRICAL CHARACTERISTICS 6 OPTICAL CHARACTERISTICS 7 BLOCK DIAGRAM 8 RELIABILITY TESTS 9 LCD INTERFACE 10 OUTLINE DIMENSIONS 11 APPEARANCE STANDARD 12 PRECAUTIONS 13 DESIGNATION OF LOT MARK SHEET No.

7B64PS 2701-TX20D207VM0AAA-2 7B64PS 2702-TX20D207VM0AAA-2 7B64PS 2703-TX20D207VM0AAA-2 7B64PS 2704-T

TX20D207VM0AAA Features

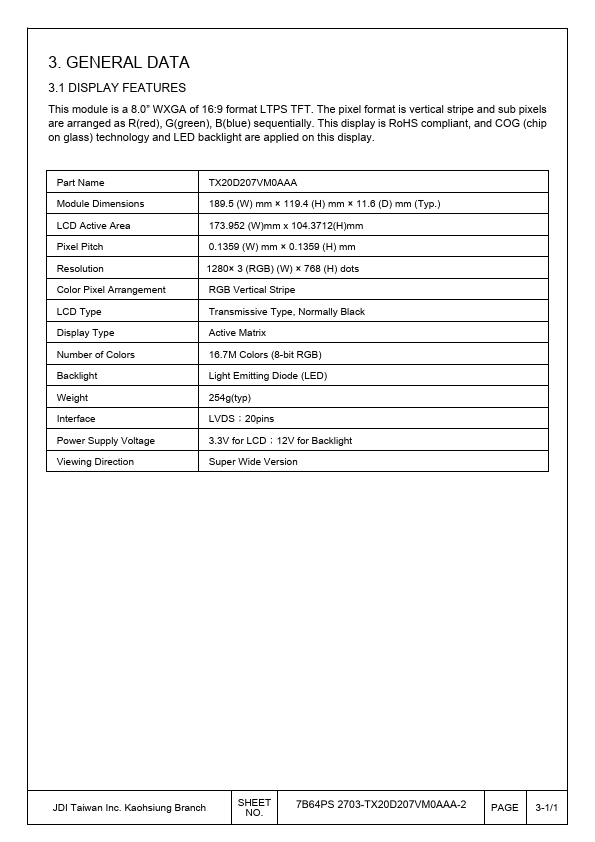

* This module is a 8.0” WXGA of 16:9 format LTPS TFT. The pixel format is vertical stripe and sub pixels are arranged as R(red), G(green), B(blue) sequentially. This display is RoHS compliant, and COG (chip on glass) technology and LED backlight are applied on this display. Part Name Module Dimension
