TX20D34VM2BPA - WVGA of 16:9 format amorphous silicon TFT

Datasheet Summary

Features

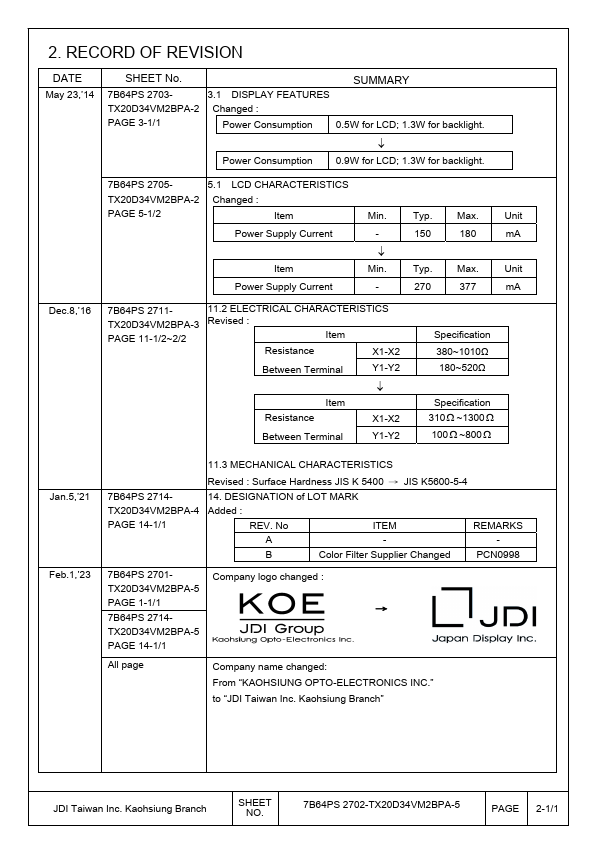

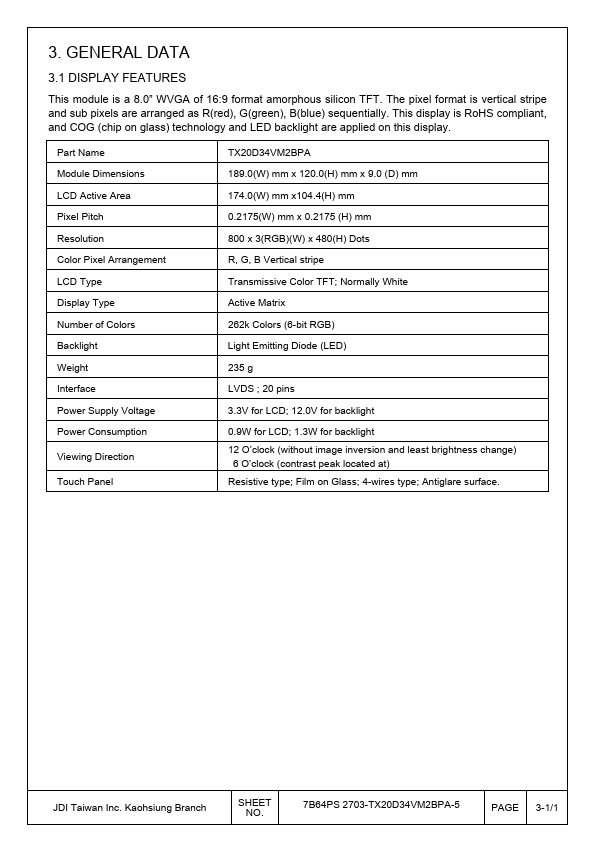

TX20D34VM2BPA-2 Changed : PAGE 3-1/1 Power Consumption 0.5W for LCD; 1.3W for backlight. Power Consumption  0.9W for LCD; 1.3W for backlight. Dec.8,’16 7B64PS 2705- 5.1 LCD.

JDI

📥 Download Datasheet

TX20D34VM2BPA WVGA of 16:9 format amorphous silicon TFT by JDI - Datasheet Preview — Datasheet preview – TX20D34VM2BPA

Datasheet Details

Part number	TX20D34VM2BPA
Manufacturer	JDI
File Size	680.77 KB
Description	WVGA of 16:9 format amorphous silicon TFT
Datasheet	TX20D34VM2BPA Datasheet
Additional preview pages of the TX20D34VM2BPA datasheet.

📁 Similar Datasheet

TX20D33VM2BAA - LCD Module (KOE)
tx20d16vm2baa - LCD_Module (HITACHI)
TX20D16VM2BBA - LCD (Hitachi)
TX20D17VM2BAA - LCD Module (Hitachi)
TX20D17VM2BBA - LCD (Hitachi)
TX20D19VM2BAA - LCD (Hitachi)
TX20D19VM2BPA - LCD (Hitachi)
TX20D200VM2BAB - LCD Module (KOE)
TX20D200VM5BAA - WVGA of 16:9 format amorphous silicon TFT (KOE)
TX20D201VM2BAB - Display Module (KOE)

Other Datasheets by JDI

TX20D200VM2BVA - WVGA of 16:9 format amorphous silicon TFT
TX20D207VM0AAA - WXGA of 16:9 format LTPS TFT
TX20D207VM0AVA - WXGA of 16:9 format LTPS TFT
TX23D202VM0BAA - WVGA of 16:9 format of amorphous silicon TFT
TX26D206VM0BAA - HD of 8:3 format LTPS TFT
TX26D208VM0AAA - FHD of 16:9 format of LTPS TFT
TX26D211VM0BAA - XGA of 4:3 format of amorphous silicon TFT
TX27D200VM0AVB - WXGA of 16:9 format of LTPS TFT

Full PDF Text Transcription

Click to expand full text

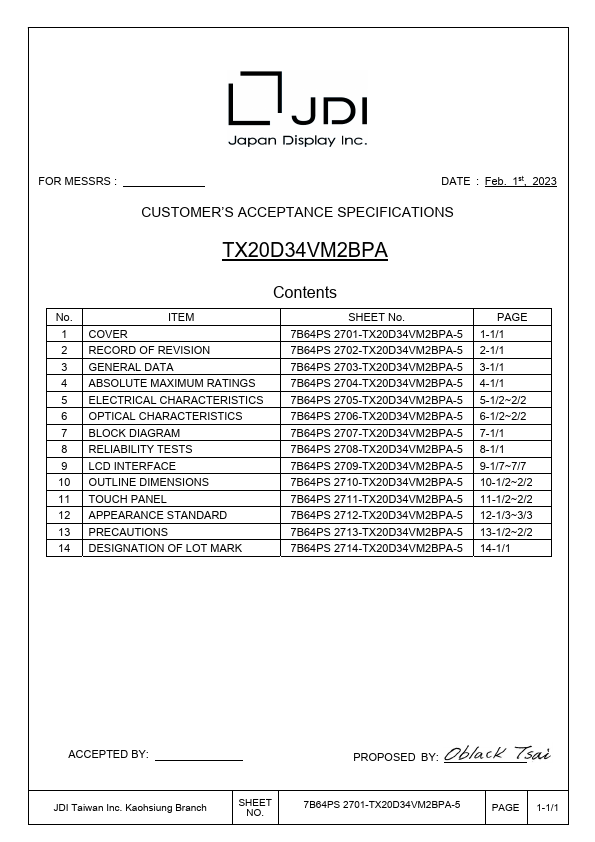

FOR MESSRS : DATE : Feb. 1st, 2023 CUSTOMER’S ACCEPTANCE SPECIFICATIONS TX20D34VM2BPA Contents No. ITEM 1 COVER 2 RECORD OF REVISION 3 GENERAL DATA 4 ABSOLUTE MAXIMUM RATINGS 5 ELECTRICAL CHARACTERISTICS 6 OPTICAL CHARACTERISTICS 7 BLOCK DIAGRAM 8 RELIABILITY TESTS 9 LCD INTERFACE 10 OUTLINE DIMENSIONS 11 TOUCH PANEL 12 APPEARANCE STANDARD 13 PRECAUTIONS 14 DESIGNATION OF LOT MARK SHEET No.
